Home > Products > Stage LED Screens > P3 SMD Indoor Stage LED Screens Rental For Shows , Stage LED Panels 3500cd / 16.7M

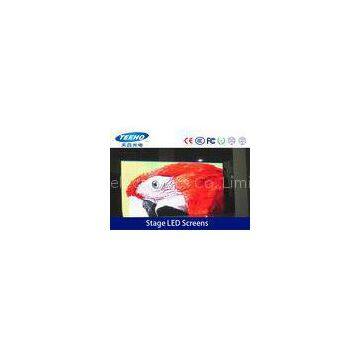

P3 SMD Indoor Stage LED Screens Rental For Shows , Stage LED Panels 3500cd / 16.7M
- T/T L/C D/P D/A
- 7 days
You May Like
-
3-IN-1 SMD Indoor P6 Stadium LED Display Screen For Football Court , MBI5024 1R1G1B
-
P7.62 3-IN-1 Stadium LED Display Indoor , High Brightness 2000cd/
-
P10 Wide Angle Stadium LED Display Board , Advertising SMD Moving LED Display
-
P10 DIP Stadium LED Display Panel , Advertisement IP43 Perimeter LED Display
-
DIP Full Color P12.5 Stadium LED Display Advertising , High Brightness
-
Outdoor IP65 P16 Stadium LED Display Full Color , High Definition 8000cd/
Product Details
| Brand Name | TeehoLED | Place of Origin | China | |
Product Description
Certification:CE,UL, ROHS, 3C, ISO,FCC
P3 SMD Indoor Stage LED Screens Rental For Shows , Stage LED Panels 3500cd / ㎡ 16.7M
?
Quick Detail:
1.High resolution；
2 Best match for price and quality；
3.High brightness；
4.Satisfactory after-sales.
Specifications: LED Specification
Part Number | SungreenLED-P3 |
Resolution | 64(H)×32(V) |
Pixel Pitch | 3mm |
LED Configuration | 1R1G1B 3-IN-1 SMD |
Pixel Density | 111,111 pixels/ ㎡ |
Module Size | 192*96mm |
Driving IC | MBI5024 |
Driving Method | 1/8 Scan, Constant Current |
Cabinet Weight | 42kg/sq.m. |
Mechanical Ratings |
|
Hanging Weight Support | 2T |
Surface Flatness | Gap<0.5mm |
Optical Ratings |
|
Brightness | >3,500cd/ ㎡ |
View Angle | 150°/150° |
Gray Scale | 8bits input, correction with 14bits |
Display COLOR | 16.7M |
Brightness Adjustment | 0～100% |
Power Supply |
|
Operation Power | 90～260V 50～60Hz |
Max. Power Consumption | 500W/ ㎡ |
Average Power Consumption | 200W/ ㎡ |
Control System |
|
Control Mode | Synchronous display with control PC by DVI |
Frame Update Frequency | 60～85Hz |
Screen Refresh Frequency | 300～1000Hz |
Gamma Correction | -5.0～+5.0 |
Support Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance | Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode | 1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction | Pixel, Module, Cabinet |
Environmental |
|
Operating Temperature | -20°～+60° |
Operating Humidity | 10～95% RH |
Operating Life | 100,000hours |
MTBF | 5000hours |
Protection Level | ～ |
Out of Control Rate | <0.02% |
?
?
Description:
1. Easy to maintain,high resolution,less weight,easy to install,widely used;
2. Synchronous adjustment of the color and brightness of the screen body, so that the screen body presents a delicate and vivid color performance;
3. High contrast,high refresh rate, making the LED display when the image is rendered without any delay ,smear phenomenon;
4. Compatible with a variety of source inputs, such as AV, S-Video, DVI, VGA, HDMI, SDI, DP, etc;
5. Flight case professional packaging protection, control equipment to lease to play a good protection.
?
Applications:
Post office
Schools
Monitoring
Restaurants
Entertainment
?
Competitive Advantage:
1. Excellent flatness;
2. Excellent contrast;
3. Nature vivid colors;
4. High definition.
