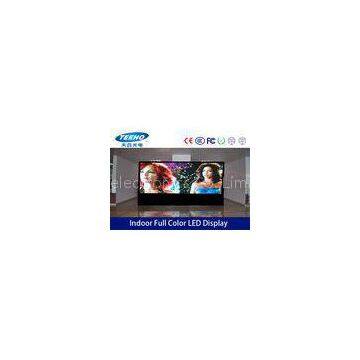

P3 MBI5020 Indoor Full Color LED Display Advertisment , 1R1G1B 3-IN-1 SMD Black Lamp
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Resolution Indoor Full Color LED Display P4mm 1R1G1B , LED Video Screen MBI5024
-
SMD 3 In 1 P5 Indoor Full Color LED Display Screen For Wedding Halls , LED Video Displays
-
High Resolution BIG P5 Indoor Full Color LED Display For Music Concert , 2000cd /
-
P6 Video Indoor Full Color LED Display Panel , High Definition LED Display 2300cd /
-
Full Color SMD Rental P6 Stage LED Display Video Wall , Movable LED Display 16.7M 130/ 120
-
SMD Indoor Full Color LED Display Screen With Lightweight Cabinet P7.62 , 17222 Pixels /
Product Details
| Brand Name | TeehoLED | Place of Origin | China | |
| Model Number | CE, 3C , RoHS, ISO,FCC,UL |
Product Description
Certification:CE, 3C , RoHS, ISO,FCC,UL
Quick Detail:
1.Super lighter and thinner;????
2. Easy connection and disassembling;???
3. Wide application, good for rental or fixed installation;?
4. High resolution and high frequency dynamic image.
P3?MBI5020?Black?Lamp?Indoor?Full?Color?LED?Display?,?1R1G1B?3-IN-1?SMD
Description:
1. P3 led display provide personalized solution according to actual request of customer;
2. Wide viewing angle: 120 degree both at horizontal and vertical line, no picture change, no color excursion;
3. 281 trillion kinds of color expression capability, 4000HZ refresh rate, eliminate stroboscopic, can achieve perfect image shooting;
4. Powerful image processing functions, RGB three color brightness, contrast, Gamma curve, each parameter adjustable;
5.Adopt reliable aluminum cabinet, solve heat dissipation problem of high density board from design.
Applications:
??????????? Shopping Malls
???????????? Music Venues and Concerts
???????????? Big office
???????????? Theater and Arts
???????????? TV Shows
???????????? Car Shows
Specifications:
|
Part Number |
Teeho-P3-B |
|
Resolution |
64(H)×32(V) |
|
Pixel Pitch |
3mm |
|
LED Configuration |
1R1G1B 3-IN-1 SMD |
|
Pixel Density |
111,111 pixels/ ㎡ |
|
Module Size |
192*96mm |
|
Driving IC |
MBI5020 |
|
Driving Method |
1/16 Scan, Constant Current |
|
Cabinet Weight |
40kg/sq.m. |
|
Mechanical Ratings |
|
|
Hanging Weight Support |
2T |
|
Surface Flatness |
Gap<0.5mm |
|
Optical Ratings |
|
|
Brightness |
≥2,500cd/ ㎡ |
|
View Angle |
130°/120° |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display COLOR |
16.7M |
|
Brightness Adjustment |
0～100% |
|
Power Supply |
|
|
Operation Power |
90～260V 50～60Hz |
|
Max. Power Consumption |
1200W/ ㎡ |
|
Average Power Consumption |
350W/ ㎡ |
|
Control System |
|
|
Control Mode |
Synchronous display with control PC by DVI |
|
Frame Update Frequency |
≥60Hz |
|
Screen Refresh Frequency |
≥320Hz |
|
Gamma Correction |
-5.0～+5.0 |
|
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
|
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
|
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
|
Brightness Correction |
Pixel, Module, Cabinet |
|
Environmental |
|
|
Operating Temperature |
-10°～+60° |
|
Operating Humidity |
10～70% RH |
|
Operating Life |
100,000hours |
|
MTBF |
5000hours |
|
Protection Level |
～ |
|
Out of Control Rate |
< |
