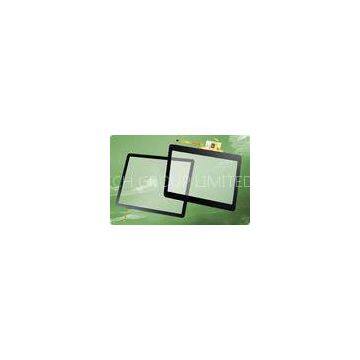

12.1" 10-point industrial Projected Capacitive Touch Panel with USB Interface

№

Item

Specification Standard projected capacitive touch panel with controller

(interface:USB)

1

Item NO.

DPT-PCT-1210XX

2

Detection method

Projected Capacitive

3

Size

12.1\"

4

working area

see drawing

5

Outline dimension

see drawing

6

Resolution

25ppi(min)

7

Input method

Finger

8

Touch action force

30~60g

9

Operating Voltage

5V adjustable

10

Operating current

2.5~10mA Depends on IC

11

Operating temperature

-10°C~60°C

12

Storage temperature

-15°C~65°C ,＜90%RH；40°C~70°C,＜60%RH

13

Humidity

10%~90%RH at 40°C, non-condensing

14

Relative humidity

10%~90%RH at 40°C, non-condensing

15

Response time

<35ms

16

Transparency

≥82% depends on the quantity of layers

17

Surface hardness

≥4H

18

Material structure

G+G.P+G,G+F+F

19

Thickness

0.7-1.1±0.15mm

20

Light transmission

92%~100%

21

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

22

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Finger Touch life

≥35,000,000 times

26

Warranty

1 year
