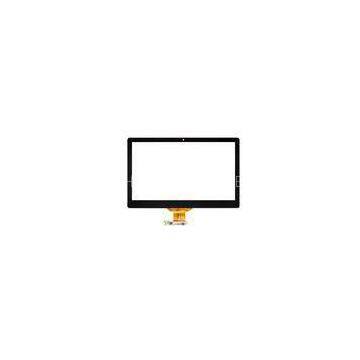

13.3inch Standard/Customized Projected Capacitive Touch Panel with USB Interface

№

Item

Specification

1

Item model

DPT-PCT-***

2

Detection method

Projected Capacitive

3

Size

13.3\"

4

Aspect ratio

4:3/16:9

5

Resolution

According to the size

6

Input method

Finger

7

Touch action force

30~60g

8

Operating Voltage

3.3V adjustable

9

Operating current

2.5~10mA Depends on IC

10

Operating temperature

-10°C~60°C

11

Storage temperature

-15°C~40°C ,＜90%RH；40°C~70°C,＜60%RH

12

Humidity

10%~90%RH at 40°C, non-condensing

13

Relative humidity

10%~90%RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥82% depends on the quantity of layers

16

Surface hardness

≥5H

17

Material

Glass + Film + Film

18

Thickness

1.3mm adjustable

Glass (1.1mm) +Top ITO Film(0.125mm) +Bottom ITO Film(0.125mm)

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Certificates

CE, FCC, RoHS

23

Working environment

Under sunlight,indoor and outdoor

24

Finger Touch life

≥35,000,000 times

25
