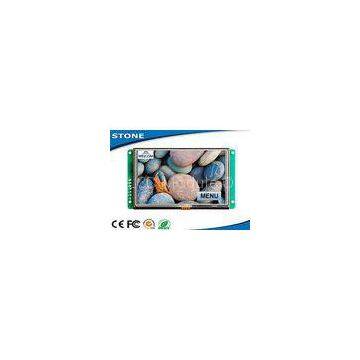

High resolution touch screen 5 TFT LCD Module with 101.57 76.18 viewing area

Physical?Parameter

Model:

STA050WT-01

Size?(Inch):

5.0’’

Resolution:

640×RGB×480

Pixel?Spacing:

0.1905mm×0.0635mm?(H×V)

Color:

65536?colors?(16?bit)

Viewing?Area:

101.57?mm×76.18?mm

Display?Dimension:

104?mm×78.6?mm

Overall?Dimension:

131mm×101mm×15.6mm(N)/?16.5mm(T)

Net?Weight:

195g(N)/?200g(T)

TFT?Panel:

A+?Level?Industry?Panel

Touch?Screen:

Industry?Level?4?wire?resistance
Or?without?touch?screen?is?optional.

Backlight?Parameter

Backlight?Type:

LED

Brightness:

400cd/m2
(Brightness?can?be?adjustable?in?100?levels.)

Contrast:

500:1

Backlight?life:

50,000?hours

Viewing?Angle:

70°/70°/50°/70°(L/R/U/D)

Working?Temperature:

-30℃?～?+85℃

Working?Humidity:

60℃,90%

Storage?Temperature:

-30℃?～?+85℃

Screen?Mode:

Digital

Performance?Parameter

CPU:

CortexM3?STM32F103??200MHz

LCD?Controller:

CPLD?EPM240

Refresh?Rate:

60Hz

Picture?Switching?Speed:

30ms/picture?(33?pictures/s)

Flash?Memory:

Standard?2GB,Extension?4GB

Memory?Amount?for?picture:

314?images

Interface:

RS232?/TTL?UART?Interface
(Extend?to?RS485?so?on.)

Pictures?downloading:

MiniUSB2.0?(12Mbps)

Voltage?Range:

DC5.0V?～?35V?(typical?value:?12V)

Power:

3.0W

Test?Report

MTBF:

4,250,000?H

Working?Temperature:

-30℃?～?+85℃

Air?Humidity:

60℃,90%

Continuous?Vibration?Testing:

10-55Hz,1.5mm,10G

Impact?Acceleration?Testing:

6ms,100G

ESD?Testing:

10KV

Radiation?Reliability?Testing

44W
