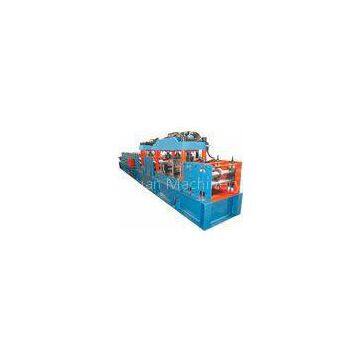

Automatic Crimping Roll Corrugated Sheet Forming Machine With ISO and CE Certificate

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Zhongyuan		Place of Origin	China
Model Number	1000mm width

Delivery Time:within 50 days
Certification:CE

Automatic Crimping Roll Corrugated Sheet Forming Machine With ISO and CE Certificate

Technical data of Crimping roll forming machine

Raw material	corrugated steel sheet (235-345Mpa)
Material of roller	45# steel being quenched treatment
Material of crimping device	Cr12 mould steel with quenched treatment, HRC58-60
Material of shaft	High quality 45# steel with heat treatment. Roller grinder milling.
Crimping speed	about 10times /minute
Power Requirement	Main motor power: 2.2Kw(Depend on final design)
Hydraulic station power: 5.5Kw (Depend on final design)
Diameter of shaft for rollers	72mm
Controlling system	Mitsubishi PLC & converter
Quantity of feeding rollers	about 3 stations for main rollers
Weight of machine?	About 3000KGS
Size of machine	about ?1600mm×1600mm×1750mm

Product application of Crimping forming machine

The product from the roll forming machines is used as roof of building.

Application example

Our Crimping Roll Forming Machine’s advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .

2. Heat treatment: Heat treatment for pressing device to remove the steel stress, to avoid deformation.

3. Pressing mould: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.

5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.?

7. All-in-house?source: We are?\"All-in-house?source\" factory to ensure quality and delivery of your machines.

8. Long life: Ensure you our produce machine’s?lifetime more than 15 years.

Certificate: ISO?9001,?CE,
