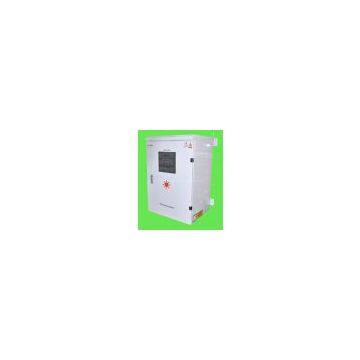

PV Grid-connected inverter (10KW-Single Phase )

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Model Number	SDS-10KW

Using the fifth generation lntellingent Power Module from Mitsubishi,

Improve the system efficiency higher

High conversion efficiency

Advanced technology for maximum power point tracking(MPPT)

(>97%)MPPT efficiency

Wide input voltage range

High reliability due to compltte protection function

Powerful communication interfaces

Easy operation and installation

Easy-to-set multilingual LCD display

Adjustable protection / operation parameters

Model	SDS 10KW
DC Input	MPPT Voltage Range	DC100 ~ 500V
Recommend PV Array Open Circuit Voltage	200~400V
Control System	MPPT
AC Output	Output Power	10K W
Rate voltage	AC220	AC380
V oltage range	AC 185V ~ 264V (1 phase)	AC 342V ~ 418V(3 phase)
Normal Grid Frequency	50/60Hz(Grid frequency)
Phases	1 phase 2 wire	3 phase 4 wire
Power Factor	> 0.95
Current THD	At rated power and in the sine wave <5%
Control System	PWM
Anti-islanding	≤0.5 sec
Max.Current	45.2A	26.7A
Max. Efficiency	97%
Euro Efficiency	96.4%
Structure	Protection Class	IP20
Cooling system	Natural cooling
Noise	< 50dB
Data Interfaces	External RS232C/RS485
Web Module( Option)	RS232C to TCP/IP
Display	LCD
