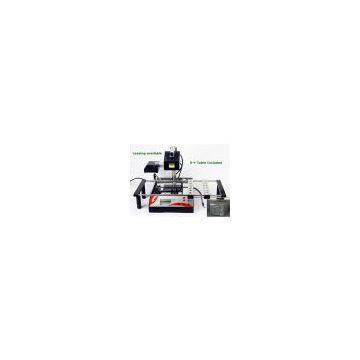

BGA rework RE7500

Features
(Lead free compatible)
- Flexible uses for all different kinds of Components like SMD, BGA,
 CBGA, CCGA, CSP, QFN, MLF, PGA and All Epoxy undefiled µBGA .. etc .
- Recommended for reworking All Plastic parts, PTH, Sockets,
 Connectors and Metal Shields .
- Complete reworking Processes (Pre-Heating, Soak, Re-Flow
 & cooling) stages are achieved for an accurate and standard reworking process .
- IR with no effect on adjacent Component .
- Sensitive Temperature measurement sensor to obtain an accurate
 and instantaneous Temperature reading and monitoring.
- Internal Picking System for Safe and Stable Removal of the ICs.
- Manual or automatic (profiled) cooling system to achieve complete
 and Standard & cooling stage process for PCBs .
- Guaranteed homogeneous and safe uniform heat distribution .
- Programmable, Automated & dynamic control for the ER-7500
 heaters .
- Guaranteed delivery of the heat energy at the precise time and
 location
- Freely programmable temperature profiles .
- Real time process monitor on your PC or Laptop .
- Avoiding Hot and Cold spots occurrence with no nozzles focus hoods
 usage .
- Optimal Tool for re balling
- Positioning during rework process is applicable by using laser
 pointer on PCB
- Precise and smooth running X-Y table included with the package.
- Easy & Friendly operation Via Automatic, Manual or PC Modes.
- Ready for sophisticated future technologies.
- One Year Warranty applies
 Field Of Application
(Whole Range of Rework Applications)

- Medium & Large Scale Service Centers.
- Mobile and radio systems devices.
- Cellular phones, PDAs, Handhelds, notebooks & Motherboards.
- LAN devices, Network Nodes and Military communication Equipments.
- Portable medical equipment
RE JOVY Soft
1- Fast USB Data Streaming and control for all
  Machine features and processes.
2- Real Time PCB Temperature monitoring
3- Complete Process Graph with Bitmap printing &
  archiving.
4- Two modes for temperature unit adjusting ( C' / F' )
5- User Profile Creation and uploading
6- Upload and adjust Machine setting (Sleep mode, Alarm sound, etc)
7- Upload Factory initial Settings.
8- Download & run ready made standard profile from
  Customer’s support Area.

 Aspects and Specifications
• Top heater Power : 300W
• Pre heater Power : 600W
• Voltage frequency : 220 volts 50/60 HZ
• Max board Size : 350mm x 450 mm
• Weight : 16KG

 Remark: All the accessaries are from Germany and be assambled in China. Welcome to contact msn madarex(at) or skype madarex.hk to know more details.Thank you!
