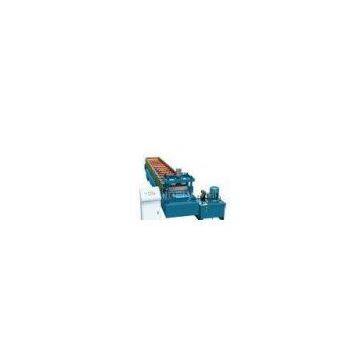

Automatic hydraulic cutting Cold Roof Rolling Forming Machine with 1250mm Pressure Plate

Automatic hydraulic cutting of Roof Rolling Forming Machine with 1250mm Pressure Plate

Description:

This equipment is a specialized machine set for the roof cold roll forming machine. It is designed and produced according to the requirements of our customers. It is belong to non-standard product.

The first step is to put raw material on a cart, the cart will lift roll material up to the rack automatically. Hydraulic spading feeds the material into straightener, and enter into main machine. Die of main machine will progressively form to reach desired dimensions. Straightening device will help to eliminate internal stress to ensure flatness of products. Cutter will cut a intented length. Finally, the finished products will be moved away from the receiving platform.

Applications:

It used for building trades.

Specifications:

1. Material of pressure plate: color plate, thickness: 0.2-0.8mm, unfolded width about: 1250mm

2. Forming speed: 0-10m/min

3. Forming station: 11

4. Material of roll: 45# high quality steel hard chrome plating

5. Material of principal axis: 45# high quality round steel, Diameter: ??70

6. Material of chain wheel: 45#, 18 teeth, 16A chain

7. Rack: 350X175 H-beam welding, panel-type structure, and 6211 high-quality bearings

8. Main motor power: 5.5KW, cycloid pin gear speed reducer, frequency conversion velocity modulation

9. Installation dimension about: (L*W*H): 7.5*1.7*1.4m

10. Use computer to control the length of the product, hydraulic cutter

11. Material of blade: Cr12, quenching treatment

12. Hydraulic station power: 4KW

Competitive Advantage:

1.Automatic roll forming machine

2.High quality
3.Factory direct price
4.Design by COPRA@ software from Germany

5.On time delivery

6.Good service
