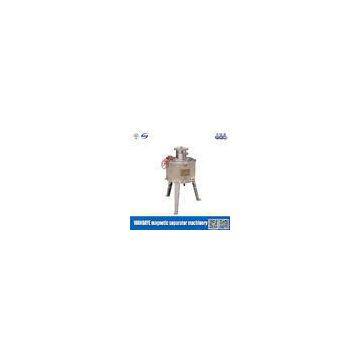

High Gradient Wet Magnetic Separator 1.5KW 160mm Diameter / Slurry Separation Equipment
- T/T L/C D/P D/A
- 7 days
You May Like
-
2.5T Manual Wet ElectromagneticSeparator Water / Oil Double Cooling
-
Mining Equipment Automatic Wet Magnetic Separator for Slurry 2T 220ACV 7DCA
-
30000 Gauss Slurry Wet Magnetic Separator With High Gradient Magnetic Field
-
Professional Water Cooling Manual Wet Magnetic Separator 3T 7KW 300mm
-
Energy Saving Iron Ore Electromagnetic Slurry Separator For Quartz Beneficiation
-
High Efficient Wet Magnetic Separator , Metal Separation Equipment With ISO9001
Product Details
| Brand Name | WDY | Place of Origin | China | |
| Model Number | WD-1.5A160 |
Product Description
Certification:ISO9001：2008
Wet Magnetic Separator Eletromagnetic Automatic for Slurry 1.5KW Diameter 160mm
Product characteristic
High gradient magnetic field
The magnetic field distribute evenly
Applying water to cool the machine
The valve have a good quality?
Netting is made from the special material
Technical parameter
|
Model |
1.5A160 |
3A190 |
7A250 |
7A300 |
11A250 |
18.5A250 |
20A400 |
|
Magnetic field strength(T) |
2.5 |
2 |
3 |
3 |
3.5 |
3 |
3.5 |
|
Input voltage(ACV) |
220 |
220 |
380 |
380 |
380 |
380 |
380 |
|
Maximumoutput current(DCA) |
10 |
7 |
20 |
20 |
20 |
55 |
25 |
|
Maximum coil power(KW) |
1.5 |
3 |
7 |
7 |
11 |
18.5 |
20 |
|
Insulation method |
E |
E |
E |
E |
E |
E |
E |
|
Cooling method |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
water and oil double cooling |
Water and oil double cooling |
|
Magnetic lumen diameter(mm) |
160 |
190 |
250 |
300 |
250 |
250 |
400 |
|
Pipe size(mm) |
50 |
50 |
89 |
89 |
89 |
89 |
89 |
|
yield(m3/h) |
3-10 |
5-10 |
10-30 |
15-30 |
10-30 |
10-30 |
20-60 |
|
dimension(mm) |
946(H) |
860*860* 1540 |
1200*1200* 1850 |
1200*1200* 1850 |
1200*1200* 1850 |
1400*1400*1850 |
1500*1500* 1850 |
|
Main machine weight (KG) |
180 |
510 |
1050 |
1070 |
1210 |
1500 |
3000 |
|
Usage |
Applicable for 40-400 mesh feedstock of iron elimination |
Operation process
Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.?
After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator.
Then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.
Application scope
Electromagnetic slurry separators are widely used in the mine, chemical?and food industries to remove the ir
