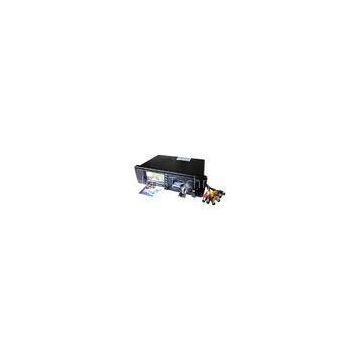

Vehicle GPS Digital Tachograph Driving Recorder With RS232 Port

Vehicle GPS Digital Tachograph Driving Recorder With RS232 Port

Based digitization image compression storage and 3G wireless transmission technology, combined GPS tracking/monitoring, vehicle driving recorder, SD card high capacity storage, Driver IC card ID recognition, multiple data interface, voice calls and other features. Based vehicle’s standard embedded type structure to design, make it is easy to install. Meet the requirements of national standard GB-T 19056-2003/ Guangdong DB44/T578 standard.

Product Functions:

1.Image: adopt H.264 technology to achieve the

monitoring by 4 routes real time image, store image at regular time, event record, alarm record, image resolution D1/Half D1/CIFcan be select.

2.SD storage:

adopt high capacity SD card to store image, strong error correction feature, it is safety for image in the condition of inside vehicle.

3.Image transmission:

Real time transmit/monitor video via PRS/3G, double code flow to transmit, adjustable transmission rate.

4.reply image:

routes image can be synchronous replay via DVR player, eplay according with the requirements, editing and storage, characters superposition, geographic info superposition.??

5.GPS monitoring:

Automatic tracking, regions setting, geo-fence, GPS mileage statistics, vehicle mileage statistics, blind area supplementary report, traces storage, base station positioning.

6.Signal detecting and control:

8 routes switch signal input, 1 route vehicle speed sensor’s signal input, 2 routes analog signal input, 5 routes relay control output. Intelligence mode and forced mode to cut fuel/circuit, cameras’ power source control, user-defined backup output control.

7.Alarm:

SOS, parking over time alarm, speeding alarm, speeding early warning, fatigue driving alarm, deviation alarm, lost power alarm, low power alarm.

8.Voice and phone call:

hands free phone, remote listen in, voice reminding device, TTS voice report.

9. National standard/local standard:

display communication info/vehicle driving info, collect/store info, recognize driver ID, parameters setting, import/export data and print out info.

10. Module for bus:

automatic report station/manual report station inside/outside the bus, RFID driver attendance management can be achieved by this module.

11.Display screen:

It can display the information like positioning, driving, dispatching and other data. Press key to check the message and set the menu.?

? ??12.Road detecting:

road detecting, road detecting calculation, departure alarm, speeding alarm,
