Product Details
| Place of Origin | Shanghai, China | Brand Name | H11 V-bank hepa filter | |
| Model Number | H11 V-bank hepa filter |
Product Description

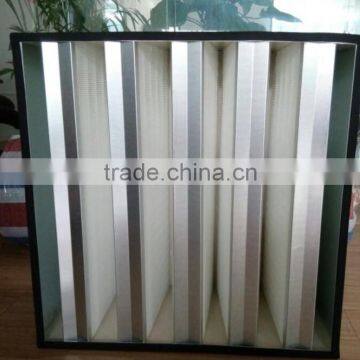

Industrial filter Mini Pleated Media Mutiple H11 V-bank hepa filter
Features:
1,Low pressure drop V-bank filter design
2,Mini-pleat design, glass fiber filter paper
3,High dust loading capacity, long service life
4,Firm structure, good performance under turbulent air flow
5,Efficiency:65%(M6),85%(F7),90%(F8)(EN779)
99.95%@MPPS(H13)
99.995%@MPPS(H14)
Product Description:
V-Bank Mini-pleat filter is a heavy duty filter and it is applicable to system with constant or variable air flow.
The specially designed thermoplastic rubber septum can maintain the distance between each pleat. This design can increase the filter surface area, decrease its power consumption and lower the operational cost.
Wide size are available.





Type:V-bank filter No of banks: 4V Surface:24m² Size:585X585X292mm Efficiency:99.995% Characteristic:big air flow with comparative low prefilter drop,long enough use life. The air filter are not limited to the below table, but can be produced according to the customers' design and specifications
Part NO. | Dimensions (mm) | Dimensions (inch) | Type | No. of Banks | Remark | |
1 | 277*585*292 | 11*23*11.5" | V-Bank | 4V |
1,Be from low efficiency(prefilter) to high efficiency (HEPA, ULPA)
2,Be big air flow with comparative low pressure drop, long enough use life
3,The air filters not limited to the table, but can be produced according to the customers’ design and specifications.
4,The HVAC air filter can be produced according to the customers’ design and requirements | |
2 | 305*305*70 | 12*12*2.8" | Panel | – | ||
3 | 305*305*124 | 12*12*4.9" | V-Bank | 4V | ||
4 | 305*305*149 | 12*12*5.9" | V-Bank | 4V | ||
5 | 305*610*292 | 12*24*11.5" | V-Bank | 5V | ||
6 | 380*380*203 | 15*15*8" | V-Bank | 6V | ||
7 | 380*380*292 | 15*15*11.5" | V-Bank | 6V | ||
8 | 457*457*292 | 18*18*11.5" | V-Bank | 6V | ||
9 | 508*508*203 | 20*20*8" | V-Bank | 4V | ||
10 | 585*585*292 | 23*23*11.5" | V-Bank | 4V | ||
11 | 610*450*150 | 24*17.8*6" | V-Bank | 5V | ||
12 | 610*610*292 | 24*24*11.5" | V-Bank | 6V | ||
13 | 610*610*292 | 24*24*11.5" | V-Bank | 4V | ||
14 | 610*610*292 | 24*24*11.5" | V-Bank | 5V | ||
15 | 910*610*292 | 36*24*11.5" | V-Bank | 5V | ||
16 | 595*900*292 | 23.5*35*11.5" | V-Bank | 7V | ||
17 | 592*287*295 | 23.3*11.3*11.6" | V-Bank | 2V | ||
18 | 490*287*295 | 19.3*11.3*11.6" | V-Bank | 2V | ||
19 | 287*287*295 | 11.3*11.3*11.6" | V-Bank | 2V | ||
20 | 610*287*295 | 24*11.3*11.6" | V-Bank | 2V | ||
21 | 490*592*292 | 19.3*23.3*11.5" | V-Bank | 3V | ||
22 | 490*490*292 | 19.3*19.3*11.5" | V-Bank | 3V | ||
23 | 490*287*292 | 19.3*11.3*11.5" | V-Bank | 3V | ||
24 | 592*592*295 | 23.3*23.3*11.6" | V-Bank | 3V | ||
25 | 592*490*295 | 23.3*19.3*11.6" | V-Bank | 3V | ||
26 | 592*287*295 | 23.3*11.3*11.6" | V-Bank | 3V | ||
27 | 592*592*292 | 23.3*23.3*11.5" | V-Bank | 3V | ||
28 | 592*490*292 | 23.3*19.3*11.5" | V-Bank | 3V | ||
29 | 592*287*292 | 23.3*11.3*11.5" | V-Bank | 3V | ||
30 | 592*592*295 | 23.3*23.3*11.6" | V-Bank | 4V | ||
31 | 592*490*292 | 23.3*19.3*11.5" | V-Bank | 4V | ||
32 | 592*287*295 | 23.3*11.3*11.6" | V-Bank | 4V | ||
33 | 592*592*295 | 23.3*23.3*11.6" | V-Bank | 4V | ||
34 | 592*490*295 | 23.3*19.3*11.6" | V-Bank | 4V | ||
35 | 592*287*295 | 23.3*11.3*11.6" | V-Bank | 4V | ||
36 | 610*610*292 | 24*24*11.5" | V-Bank | 4V | ||
37 | 305*610*295 | 12*24*11.6" | V-Bank | 5V | ||
38 | 610*610*295 | 24*24*11.6" | V-Bank | 5V | ||
39 | 305*305*292 | 12*12*11.5" | V-Back | 4V | ||
40 | 600*300*292 | 23.6*11.8*11.5" | V-Back | 5V | ||
41 | 460*600*150 | 18*23.6*5.9" | V-Back | 4V | ||
42 | 425*425*292 | 16.8*16.8*11.5" | V-Back | 4V | ||
43 | 484*484*220 | 19*19*8.7" | V-Back | 4V |
| |
44 | 320*320*220 | 12.6*12.6*8.7" | V-Back | 6V |
| |
45 | 1220*610*150 | 48*24*6" | V-Back | 4V |
| |
46 | 1220*610*292 | 48*24*11.5" | V-Back | 5V | ||
