1080P Full HD 2 Camera Dual Channel Recording AutomobileDVR Camera With Suction Cup Brackets

Specifications:

1) Image sensor: CMOS WXGA HD photographic chip, and up to 5 million pixels

2) Video resolution: VGA (1280 * 480) / QVGA (640 * 240)

3) Camera resolution: 5M/3M/2M/1.3M/VGA

4) Display: 2.7 “16:9 TFT LCD screen

5) Focus range: 12cm - infinity

6) Photo format: JPEG

7) Video format: AVI

8) Operating temperature :0-40℃

9) Power supply: built-in lithium battery / vehicle-bone charger

10) Support TF card, max. 32GB

11)? Output: USB2.0/TV

12) Size: 135 * 63 * 28.5mm

13) Weight: 125g

Accessories

Description:

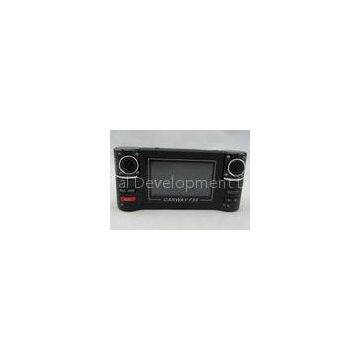

The MA-F30 car DVR model is with 2 camera (dual channel recording) with HD quality. The 2 cameras can be rotated to different angle to meet the customer need.

Operation

Charge Lithium batteries

1) The battery is connected to the vehicle-bone charger to charge while working, and is charged fully by 90 minutes at its shut-down state

2) It can be connected to the computer with the USB cable for charging.

The red indicator is on during charging, and will be off after it is charged completely

Features

Video mode

1. The machine starts automatically and enters into the video mode after the vehicle starts

2. Hold OK button to turn on/off the night vision infrared light

3. Hold the Left button to switch between the day / night

shoot mode.

4. Hold the right button to switch the lens combination, and the single-lens video is also available to select

5. Two resolutions are available, i.e. VGA (1280 * 480) and QVGA (640 * 240)

6. The sound record can be turned off in the menu, and then the video can record the image without the sound

6. In case of emergency, press SOS button to save compulsively the valuable video, and the video will be protected from being overwritten

Camera Mode

After the machine starts, press MODE button to enter the camera mode, press REC / OK button to take pictures, and there are five resolutions for you, including: 5M, 3M, 2M, 1.3M and VGA.

Preview mode

Power on the machine and press MODE button twice to enter the Preview mode, and then the playback, delete and other operations are available.

Menu setting

Press the Menu button to enter the setting interface, the Left / Right buttons are used to select listed settings, and press OK to enter the interface of function parameters, and then select the specific parameters, and finally press OK to exit.

1)??? Resolution: VGA (1280 * 480); QVGA (640 * 240)

2) Lens combination: CAM1 +2 / CAM2 +1 / CAM1/CAM2

2)??? Exposure value: +2.0 / +1.0 / +0.0 + -1.0/-2.0

4)??? Time stamp: Off / Date / Date and Time

5) Sound record: Off / On

In the setting interface, press the MENU to enter the following settings, press the Left / Right to select the specific parameters, and press REC to save and exit.

1) Format: Cancel / OK

2) Beep: Off / On

3) Language: English / French / German / Italian / Spanish / Portuguese / Traditional Chinese / Simplified Chinese / Japanese / Russian

4) Auto shut-down: three minutes / shut down

5) System reset: Cancel / OK

6) Frequency: 50Hz/60Hz

7) Video output format: NTSC / PAL

8) Input date: /

9) Infrared night vision: Off / On

10) Sound prompts: Off / On

11) Motion detection: Off / On

Download files

1)??? Download files from compu
