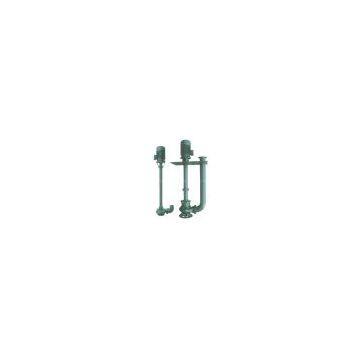

100YW-80-9 Motor Pump

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China
Model Number	100YW-80-9

Product Description

Product description:
1. Single or two impellers structure, improve the draining, long fiber whose length is 5 times longer and solid granule whose diameter is 50% than pump inlet can go through.
2. New material tungsten carbide seals, improved two surfaces seal stays in oil room, pump can work 8000h safely non-stop.
3. Vertical structure, the pump body is in water when it runs, easy to start, doesn't have exhaust and drain air, no leakage, works in 0.5-7m depth water.
4. Reliable structure, pump and motor connected by flexibility shaft connector, that pump shaft size is very accurate guarantee the pump works smoothly.
5. Operate in full lift range, never overload.
6. Full automatic control cabin is optional, the pump starts or shuts off automatically according to the liquid level, don't need to monitor by people, very convenient.

Applications:
Chemical industry, petroleum, pharmacy, mining, paper making, cement factory, steel-making factory, power station, city drainage system, city planning, construction projects, and transport clear water.

Work condition:
1. Medium must be lower than 70^o and 1-1.3kw/dm3
2. PH of Cast-iron material Medium is 5-9
3. 1Cr18Ni9Ti stainless steel can transport any kind of caustic medium.
Note: please advise if any special temperature and medium when placing order to help us to provide reliable products.

Model Description:

Performance Data:

Model	Flow (m³/h)	Head (m)	Speed (r/min)	Frequency (Hz)	Efficiency (%)	Impeller OD (mm)
40YW12-15	12	15	2900	1.5	48	40
50YW20-7	20	7	1450	0.75	62	50
50YW10-10	10	10	1450	0.75	54	50
50YW15-15	15	15	2900	1.5	51	50
50YW15-20	15	20	2900	2.2	51	50
50YW17-25	17	25	2900	3	53	50
50YW25-32	25	32	2900	5.5	49	50
65YW25-15	25	15	2900	2.2	52	65
65YW37-13	37	13	2900	3	60	65
65YW25-28	25	28	2900	4	58	65
80YW40-7	40	7	2900	2.2	50	80
80YW29-9	29	9	2900	2.2	48	80
80YW43-13	43	15	2900	3	65	80
80YW40-15	40	13	2900	4	57	80
80YW50-25	50	25	2900	7.5	56	80
100YW80-9	80	9	1450	4	62	100
100YW110-10	110	10	1450	5.5	97	100
100YW65-15	65	15	1450	5.5	59	100
100YW100-15	100	15	1450	7.5	70	100
100YW80-20	80	20	1450	7.5	71	100
100YW100-22	100	22	1450	15	61	100
150YW145-9	145	9	1450	7.5	63	150
150YW200-10	200	10	1450	15	64	150
150YW160-15	160	15	1450	15	67	150
150YW180-22	180	22	1450	18.5	74	150
150YW150-26	150	26	1450	18.5	72	150
150YW130-30	130	30	1450	22	69	150
150YW200-30	200	30	1450	37	65	150
150YW150-35	150	35	1450	37	63	150
200YW250-11	250	11	1450	15	72	200
200YW250-15	250	15	1450	18.5	72	200
200YW400-10	400	10	1450	22	75	200
200YW310-13	310	13	1450	22	71	200
200YW400-13	400	13	1450	30	76	200
200YW250-22	250	22	1450	30	71	200
200YW350-25	350	25	1450	37	73	200
200YW250-35	250	35	1450	45	69	200
250 YW 600-9	600	9	1450	30	78	250
250YW600-12	600	12	1450	37	76	250
250YW600-15	600	15	1450	45	73	250
