Product Details
| Brand Name | Wordop | Place of Origin | China | |
| Model Number | FPR Series |
Product Description
Certification:CE, RoHS

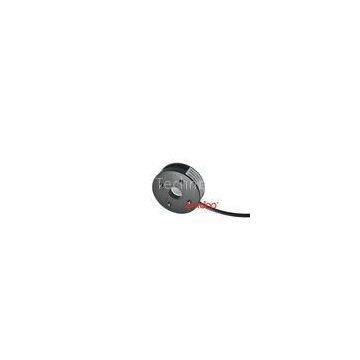

FPR Series LED Diffused Lighting Automated Inspection Systems , LED Ring Illuminator
Products Features
◆ FPR series achieve shadowless effect, eliminating the glare and reflective light from LED.
◆?The light emits from the side,diffusing through the flat light guiding material to achieve high uniformity.
◆?It can repalce the coaxial lights.
Application
1. Inspection of tablet appearance.
2. Recognition of 2D?code on the metal surface.
3. Inspection of cracks on the small metal component surface.
4. Inspection of laser characters on the surface of ceramic capacitor.
Model No. Demonstration
|
FPR- |
100 |
R |
|
Series |
O.D |
Color |
Illumination Structure?
Product?Lineup?Table
|
Series |
Model |
Color |
Voltage/Power |
Dimensions |
Diagrams |
||
|
O.D.mm |
I.D.mm |
Height(mm) |
|||||
|
FPR |
FPR-100R |
R |
24V/3.5W |
102 |
33 |
12 |
1 |
|
FPR-100W |
W |
24V/5.0W |
|||||
|
FPR-100B |
B |
||||||
|
FPR-130R |
R |
24V/5.7W |
125 |
44 |
12 |
2 |
|
|
FPR-130G |
W |
24V/6.1W |
|||||
|
FPR-130B |
B |
||||||
|
FPR-200R |
R |
24V/9.0W |
216 |
70 |
12 |
3 |
|
|
FPR-200W |
W |
24V/11W |
|||||
|
FPR-200B |
B |
||||||
|
FPR-250R |
R |
24V/11W |
272 |
120 |
12 |
4 |
|
|
FPR-250W |
W |
24V/13W |
|||||
|
FPR-250B |
B |
||||||
|
FPR-330R |
R |
24V/14W |
356 |
220 |
12 |
5 |
|
|
FPR-330W |
W |
24V/16W |
|||||
|
FPR-330B |
B |
Dimension Diagrams (mm)
Application Example
1 With FPR-100W lighting motor rotor,the products outline can be distinguished ?from the backgroud
? ?at?the greatest extent.
2?Inspection of the burrs at the edge of the camera with FPR-100R. The burrs are displayed in white.
3?Under the shadowless light of FPR-100B, the details of bottle bottom are displayed clearly and ? ? ??uniformly, including black spots, printing characters and other defects?
? ? ? ? Case 1 FPR-100W ? ? ? ? ? ? ? ? ?? ? ? Case 2 FPR-100R ? ? ? ? ? ? ? ? ? ? ? ?Case 3 FPR-100B
