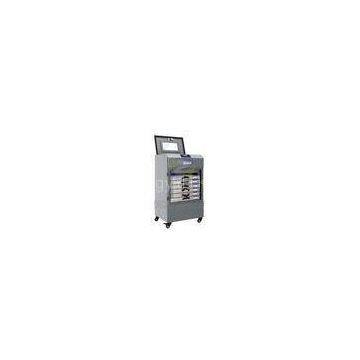

Fumes Collecting Small Portable Dust Collector Systems Fume Extractor Machine

Brand Name	Waterun		Place of Origin	China
Model Number	F5000D

Delivery Time:10 working days after received your payment
Certification:CE/ROHS/SGS

?
Big Power 450W Dust and Fume Extractor System for Dust Collecting AC 110V-220V
?
Specifications:

Model Number:	F5000D
Voltage/Power:	110-220V, 450W
Systemic Flow:	500m3/h
Filtering Efficiency:	0.3μm99.97%
Inlete	φ90mm
Noise:	Less than 70db
Dimensions(mm)	550X415X920
Net weight	60kgs

?
?
Description:
?
F5000DDust and Fume Extractor type designed by our company especially for waste gas and odor of tin furnace melting furnace Soldering welding argon arc welding, plasma cutting ink operation emissions, odor.
??
Features:
?
?
1. CE and PONY certified, safe and reliable.

Designed according to standards:?Indoor Air Quality Standard, GB21551.1- 2008 and GB/T 18801. Awarded national appearance design patent and the overall structure utility model patent. No counterfeiting is allowed.?

2. Four-stage purification design: filtering step by step enables harmful smoke to be better purified. Even for objects at least 8 times smaller than PM2.5, the purification rate can reach up to 99.97%.

Active carbon filter element with catalyst can absorb multiple substances that exist in the air to be purified and are with foreign odor, toxic and harmful. Modular design for protection layer by layer: Independent replacement of primary, medium and high-efficiency filter elements enables longer service life of filter element and lower use cost. Energy conservation and environmental protection: Built-in circular initiative filtering method can prevent indoor cold air/warm air from flowing outside without destroying temperature and humidity environment in the operation section.?

3. ?Integrated body design, structured with metal framework and processed with electrostatic spraying for premium cold-rolled steel sheet, is corrosion-resistant, environment-friendly and durable.

Original noise reduction structure design enables it to work more quietly and create a more tranquil and pleasant environment. Unique modeling curve design of original “air inlet flange” better accords with fluid mechanics principle (A patent application has been filed). Microcomputer intelligent control and digital display keep you informed of the use condition all the time. Really effective intelligent “filter element blockage alarm” function gives an acousto-optic alarm immediately upon filter element blockage. Available for remote operation; stepless speed regulation for you to regulate air volume and suction force arbitrarily without the necessity of bending over and lowering your head.?? Small, easy to use and install; standard castor for convenient and flexible movement.

4.?This product has the 1.4m universal smoke suction arm, which can be positioned and oriented arbitrarily (its length may be regulated according to customer requirements, without the support of external force). (A patent application has been filed.)

Original square-shaped smoke hood, uniquely structured in accordance with aerodynamics principle, has larger smoke suction area and better efficiency. (A patent application has been filed.) Easy installation and convenient use without the necessity of laying pipes otherwise.

5. Adopt DC brushless motor that has stable performance and long service life. Low noise, high efficiency, low energy consumption, zero maintenance and zero consumable.

The wind wheel, designed in vortex backward type, adopts special alloy material that could effectively prevent itself from being corroded. Unique dynamic balance correction technology enables it to operate more stably and reliably, with higher wind suction volume. (A patent application has been filed.

?
Applications:
?
We,Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Our line of floor, bench top, mounted and portable units serve a variety of applications including dust collecting,welding, soldering, manufacturing, laboratory and pharmaceutical operations.
?

1.	dust and fume extractor system for dust collecting
2.	?laser cutting, laser engraving and marking
3.	welding, laser welding,Argon Arc welding
4.
