Product Details
| Brand Name | INVT | Place of Origin | China | |
| Model Number | GD10 |
Product Description

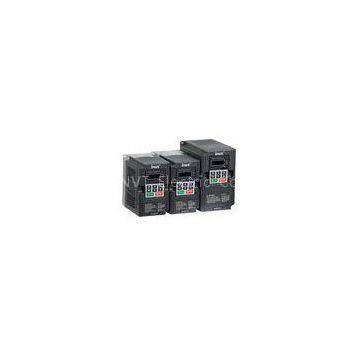

Function Mini INVT Inverter cooling Vectorization VF Control CE/ ?TUV
Advantages
1.VF control;
2.Natural cooling(for the applications with cotton and dust);
3.Mini structure,less installation space.
Brief Introduction
Goodrive 10 Series mini economy inverters are designed for the small power OEM application market.With the function of vectorization VF control and PID function,multi step speed, DC braking and modbus communication and so on,the inverter has more advantages but occupied less istallation space.
Fatures
1. 16 steps multi step speed control;
2. Standard modbus communication;
3. Built-in PID;
4 .Flexible VF curve setting;
5. Overcurrent and overvoltage stall,stronger load adaptability;
6. Multi function I/O terminal(the delay time can be set);
7. DC braking,flux braking and resistor dynamic braking;
8. Fault protection at overcurrent,overvoltage,undervoltage,overtemperature and overload with detailed fault information.
Applications
Packaging machinery,food machinery,textitle machinery,centrifuge,engraving machine,and cutting machine,etc.
Specifications
|
Function |
Specification |
|
Input Voltage(V) |
Single phase 220(-15%)-240(+10%) Three phase 220(-15%)-240(+10%) Three phase 380(-15%)-440(+10%) |
|
Input Frequency(Hz) |
50Hz or 60Hz????? Allowed range:47-63Hz |
|
Output Voltage(V) |
Equal to input voltage with the deviation of less than 5% |
|
Output Frequency(Hz) |
50Hz/60Hz, Fluctuation range:±5% |
|
Control mode |
V/F |
|
Maximum output frequency |
400Hz |
|
Adjustable-speed retio |
1:100 |
|
Overload capability |
150% of rated current:1 minute,180% of rated current:10 seconds, 200% of rated current:1 second |
|
Terminal analog input resolution |
≤20mV |
|
Terminal switch input resolution |
≤2ms |
|
Analog input/output |
1 input 0-10V/0-20mA; 1 output 0-10V/0-20mA |
|
Digital input/output |
5 common input, 1 Y output(commonly used with digital output) and 1 rogrammable relay output |
|
Communication |
485 communication |
|
Mountable method |
Wall mountable |
|
Temperature of the running environment |
-10 – 50℃,derate above 40℃ |
|
Cooling |
Single/Three-phase 220V 0.2-0.75kW natural cooling |
|
Single/Three-phase 220V 1.5-2.2kW, Three-phase 380V 0.75-2.2kW |
|
|
Fault protections |
Overcurrent, overvoltage, undervoltage, overtemperature, overload and other protections |
|
Braking unit |
Only standard for GD10-B |
