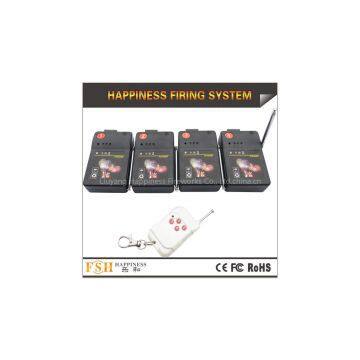

CE passed 4 channels / 4 cues 80M Wireless Remote Control Fireworks Firing System (DB01r-4)

The product is special for stage fireworks, cake fireworks and other fireworks display.

Product Characteristic

1.Transmitter ( the remote control ) - with a power switch.

2.Recivers - with antenna, the reciving signal mor stable.

3.Firing capacity - each channel could fire 1-2 pcs display igniters.

4.Programmable - multiple receivers can be controlled by a transmitter or a button on a transmitter.

5.Replaceable & Economical -  the broken receiver can be replaced by the other receiver of the same series, there's no need to buy a new transmitter.

6.Expandable - Add other receivers (available individually) to expand number of cues.

Relevant Parameter

1. Remote distance - 50-80 M

2.Transmitting frequency - 433MHz

3.Battery specification - 4 AA batteries per receiver

4.Transmitter power source - 12v 23A battery.

Instruction

1.Put the batteries into the receiver, and then turn on the power switch and lamp lighting.

2.Press the remote button, the "signal" light will turns RED.

3.Press the transmitter button.If hte power LED die out, it means the transmitter is in good condition.

4.Connect products in red&black plug, it indicates the circuit is well if power LED die out.

5.Press the transmitter button to fire the products.

Attention

1.Please connect the products in series.

2.Please do not shake incept box violently, when no need use it.

3.Notice to prevent defile incept box when it's close to fireworks.

4.Please take the cell out when no use products for prevent defile incept box.

5.Please don't place the product in the damp, sour, alkali and pollution environment.
