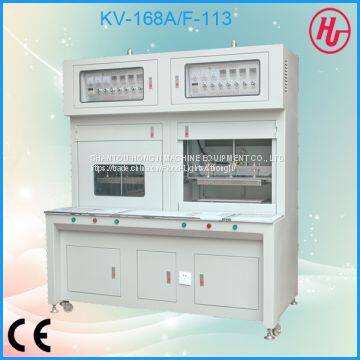

KV-168A/F-113 Luxury Design Foam Bra Cup Molding Machine

Function: It is mainly used for molding bra cups and other similar products.

Features:
(1) It adopts four guide rods with a high accuracy in guiding, which saves working time and helps the upper and lower moulds matched steadily.
(2) With whole-sealed structure, it has strong pumping installation. Equipped with external cooling fans on the molding table, it is useful for heat dissipation and prolonging discoloring period.
(3) The electric box is two-doubled door, which can protect electrical appliance. The outdoor has equipped with toughened glass window. The temperature controller is of good vision which can help operator view directly the temperature in each part and it is handy to be adjusted.
(4) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube's service life.

Technical parameter:
(1) Power supply/ Power: 220V /9.6KW
(2) Specification of the heating piece: Φ 12×300mm×400W-220V
(3) Dimension of the mould table: 500mm×300mm
(4) Dimension of the machine: 1700mm×820mm×2100mm
(5) Applicable material: materials for bra and other garments
(6) Applicable moulds: moulds for foam cups
(7) Weight: 1100KG
