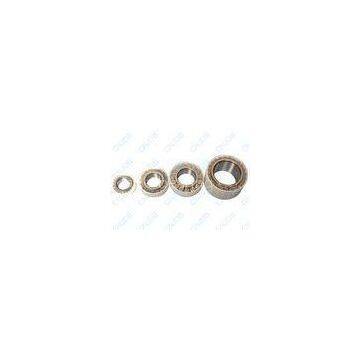

Snap Ring Groove Full Complement Cylindrical Roller Bearings With TS16949 Certification
- T/T L/C D/P D/A
- 7 days
You May Like
-
OEM Auto Car 2RS ID 45mm Axial Roller Combined Bearing MR.150
-
Small 20CrMnTi / Gcr15 Full Complement Cam Followers With Axial Guidance
-
High Precision C2 C3 P5 25mm Cylindrical Roller Bearing SL192317 / NJG2317V
-
PWTR15-2RS 20CrMnTi / Gcr15 Track Roller Bearing fit Grease Lubrication
-
NKIB 5908 Gcr15 ABEC-3 Angular Contact Needle Roller Bearing With Steel Cage
-
High Radial Load GCR15 ABEC 3 ABEC 5 Single Row Cylindrical Roller Bearings With Cage
Product Details
| Brand Name | CNJDB | Place of Origin | China | |
| Model Number | SL045004PP,NNF5004-ZLSNV |
Product Description
Certification:TS16949
Snap?Ring?Groove?Full?Complement?Cylindrical?Roller?Bearings?With?TS16949?Certification
Specifications:
| Model | SL045004PP,NNF5004-ZLSNV |
| Brand | CNJDB |
| Type | full complement cylindrical roller bearings |
| Number of Row | double rows |
| Material | 20CrMnTi,Gcr15 |
| Precision Rating | P0,P6,P5,P4,P2(ABEC1, ABEC3, ABEC5, ABEC7, ABEC9)? |
| Dimension | 20*42*30mm |
| Original of Place | Changzhou,CHINA |
| Weight(KG) | 0.2 |
| Certification | TS16949 |
| Package | Common bag,white box |
| Radial Clearance | According to DIN620 |
| MOQ | Negotiable |
| Service | Prompt Delivery |
| OEM | |
| Buyer Label Accepted | |
| Follow up and maintenance | |
| Payment Term | TT |
| Port | Shanghai |
CNJDB cylindrical roller bearings with snap ring grooves are full complement, self-retaining units comprising solid inner and outer rings, rib-guided cylindrical rollers and sealing rings.
The outer rings have grooves for retaining rings. The inner rings are axially split, 1 mm wider than the outer rings and are held together by a steel strip that is rolled into place.
|
SKF Item Number |
CNJDB??? Item Number |
W. (Kg) |
d |
Dimension |
||||||||
|
D |
H |
C |
C1 +0.2 |
D1 |
m |
rmin |
t |
x |
||||
|
NNF5004-ZLSNV |
SL04 5004 PP |
0.2 |
20 |
42 |
30 |
29 |
24.7 |
39.8 |
1.8 |
0.3 |
0.5 |
22.5 |
|
NNF5005-ZLSNV |
SL04 5005 PP |
0.24 |
25 |
47 |
30 |
29 |
24.7 |
44.8 |
1.8 |
0.3 |
0.5 |
22.5 |
|
NNF5006-ZLSNV |
SL04 5006 PP |
0.37 |
30 |
55 |
34 |
33 |
28.2 |
52.8 |
2.1 |
0.3 |
0.5 |
25.5 |
|
NNF5007-ZLSNV |
SL04 5007 PP |
0.48 |
35 |
62 |
36 |
35 |
30.2 |
59.8 |
2.1 |
0.3 |
0.5 |
27.5 |
|
NNF5008-ZLSNV |
SL04 5008 PP |
0.56 |
40 |
68 |
38 |
37 |
32.2 |
65.8 |
2.7 |
0.6 |
0.8 |
28.5 |
|
NNF5009-ZLSNV |
SL04 5009 PP |
0.7 |
45 |
75 |
40 |
39 |
34.2 |
72.8 |
2.7 |
0.6 |
0.8 |
30. |
