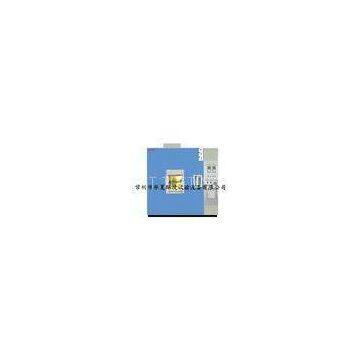

Constant Temperature and Humidity Chambers with Rigid Polyurethane Foam Insulation

Model

HS-013

Interior Dimension (mm)

1000×1000×1300

Overall Dimension (mm)

1600×1480×2280

Parameters

?Temp. range

0℃~100℃

Humidity Range

30% ~ 98% R.H

Humidity bias

+2~-3%R.H

Temp. fluctuation

≤±0.5°C

Temp. uniformity

≤2°C

Heating rate

0℃~100℃about 35min

Cooling rate

100℃~0℃about 40min

Materials

Shell material

High-quality SUS304 stainless steel plate

Liner material

High-quality SUS304 stainless steel plate

Insulation materials

Ultra-fine glass fiber insulation cotton / rigid polyurethane foam

Door seal

Double resistance to high and low temperature aging and hardening of refined silicone seal

Cold and heat exchange system

Controller

?Korea screen Controller or Japan Controller

Accuracy range: temperature ± 0.1 °C, indicating accuracy: temperature ± 0.1 °C, resolution: ± 0.1 °C

Circulatory system

Temperature low-noise motors, cycles, , stainless steel multi-leaf type centrifugal fan,the test time can set 9999 hours

Water supply

Electronic device controller automatic control of liquid, and more than recycled water, with water alarm

Humidification mode

External isolated, stainless steel electric steam humidification mode occurs

Dehumidification mode

Condensation method using the dew point temperature of the evaporator coil dehumidification mode laminar contacts

Refrigeration

Unit cooling mode / Dual (cascade) cooling method (air-cooled)

Condenser/ Evaporator

Well-known brands

Compressor

France \"Taikang\" closed refrigeration compressor / France \"Taikang\" Hermetic Refrigeration Compressors

Security Devices

Power overload, leakage, grounding, over-temperature protection (with voice prompts), fast fuse, compressor over-voltage protection

Standard

Resistant to high and low temperature heat tempered glass hollow glass windows:

300 × 200 (mm), a lighting, , the two sample holder,

Power supply

AC?220V·50HZ/380V·50HZ

Ambient temperature

15°C~+30°C ≤85%R.H
