Industrial scale HPLC preparative system for chromatography purification column ID 100mm

Description:

Equipment Introduction

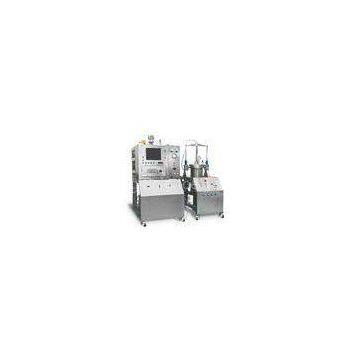

CXTH-100DAC industrial-grade liquid chromatography preparation system, by the
infusion pump system, injection system, column systems, detection and monitoring
systems, fraction collection system components. The system has a mastery of the
manufacturing process, excellent separation performance to meet your requirements
for perfect sample purification..

Applications:

100DAC explosion-proof system is widely used natural product purification, purification
of fine chemical intermediates, pharmaceutical purification: synthetic drugs,
fermentation medicine, bio-pharmaceuticals, etc.

Technical parameter:

Diameter: 100 mm

Length 650 mm (standard)l

Wall Roughness: Ra ≤ 0.4μm

Material: 316 L stainless steel

Material: 316 L stainless steel,

Pore Size: 3 - 5 μm

Material: 316 L stainless steel

Pressure Gauge: 31.5Mpa

Pressure Demand: ≥ 0.8 MPa

Gas Demand : ≥ 2 m3

Power Requirements :?2.5 kW

Maximum Flow : 500 L/min

Maximum System Pressure: 10 MPa

Flow Accuracy: ± 1.5 %

Flow Repeatability RSD ≤ 0.5%

Wavelength Range: (190 ~ 700) nm, deuterium lamp (standard configuration); tungsten lamp (Optional available

Wavelength Accuracy: ± 2 nm

(190 ~ 700) nm, deuterium lamp (standard configuration); tungsten lamp (Optional available)

Baseline Noise: ± 2 x 10-5 AU

Baseline Drifts: 4 x 10-4 AU/h

Working Mode :Isocratic or Gradient

The Character Of 100DAC Explosion-Proof System
Safe, reliable, excellent performance;
Column packing convenient, easy to operate;
Accept custom liquid chromatography system to meet the specific needs of customers;
Adjustable column length to ensure that your separation requirements;
Perfect authentication file system: DQ, FAT, SAT, IQ, OQ, PQ;
