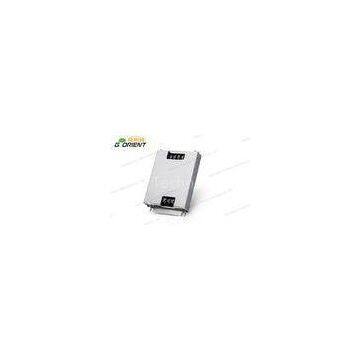

5V 20A DC to DC Power Supply for Taxi LED sign 2 Years Warranty
- T/T L/C D/P D/A
- 7 days
You May Like
-
4.5V 40A 180W High Reliability DC to DC Power Supply for Automobile
-
5V 40A 200W DC to DC Power Supply for On Board Screen / Car LED Display
-
Taxi Advertising Board DC to DC Power Supply 126W with Aluminum metal shell
-
Urban Landscape Lighting Single Output Switching Power Supply 60A 270W
-
168W Single Output Switching Power Supply 4.2V 40A 100% Guarantee CE approved
-
High Efficiency 180W Switched Power Supply IP20 for LED Screen
Product Details
| Brand Name | G-ORIENT | Place of Origin | China | |
| Model Number | NHD100-5-A |
Product Description
Certification:ISO9001 / CE / ROHS / FCC
5V 20A DC to DC Power Supply ?for Taxi LED sign ?2 Years Warranty?
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
Competitive Advantage:
* Ultra-thin 18mm
* High efficiency up to 94%
* Low output ripple and noise
* Output over-current,short-circuit,over-load,over-voltage protection
* The two level output over voltage protection
* CE / ROHS / FCC approval
Specifications:
|
Switching power supply |
?NHD100-5-A |
|
|
?OUTPUT |
DC Voltage |
?5V |
|
Current Range |
?0~20A |
|
|
Rated Current |
?20A |
|
|
Rated Power |
?100W |
|
|
Ripple & Noise(max.) |
?<100mVp-p |
|
|
Voltage set point accuracy |
? 3.0%Vo max |
|
|
Over-current protection |
?>120%io,hiccup |
|
|
Line Regulation |
?0.2%Vo max |
|
|
Load Regulation |
?0.2%Vo max |
|
|
Short-circuit protection |
?Hiccup |
|
|
Hold up time |
?>8mS |
|
|
Overshoot and undershoot |
?< 5.0% |
|
|
?INPUT |
Voltage Range |
?DC9-36V |
|
Frequency Range |
?BW=20MHz |
|
|
Efficiency(Typ.) |
?94% |
|
|
DC Current |
?<2.9A |
|
|
Inrush Current(Typ.) |
?100A at DC Cold start |
|
|
Leakage Current |
?Input-Output< 0.2mA ; Input-PG:<0.3mA |
|
|
?Environment |
MIBF |
?>2 million hrs |
|
Temp.Coefficient |
?< 0.02%/℃ |
|
|
Storage Temperature range |
?-55 ~ +115℃ |
|
|
Operaing board Temperature range |
?-30?~ +75℃ |
|
|
?Safety |
Safety standards |
?CE |
|
Withstand Voltage |
?DC40V |
|
|
?Others |
Dimension |
?120*80*18mm (L*W*H) |
|
Packing |
?0.5kg; 30pcs/15Kgs |
Features:
* To prevent car screen flower screen, the splash screen and two horizontal line design
* Input reverse connect protection
* High efficiency 94% & small size
* Low output ripple and noise
* Aluminum metal shell,natural cooling
* Through the EMC certification
* 2 years warranty
Company Advantage:
*?High?quality?products
*?Short?lead?time
*?Professional?R&D?team
*?Standardized?production?process
*?Competitive?price
*?Technical?support
*?OEM?/?ODM?available
