0.3 mm - 0.8 mm Double Layer PU Sandwich Panel Machine for Corrugated Panel

?
0.3 mm - 0.8 mm Double Layer PU Sandwich Panel Machine for Corrugated Panel?
?
?
Specifications of?producible?sandwich panels:?
?
?Max. length?? 6000mm
?Max width???? 1000mm
?Thickness???? 30mm
?
Roll forming machine (Two sets for two profiles)
?

?
?
Details of Roll Forming Machines
?
?
Main Roller Forming Machines--------------Two sets
?
1: Working speed: 12-15m/min (not contain cutting)
2:?Coil width: 1220/1100mm?? effective width: 1000mm
3: roll station: 20/13 stations
4: material of roller: grade 45 steel, polished and coated with chrome
5:material of main shaft:45﹟ steel?? diameter roller: Ф70mm
6: main power: 5.5KW??
7: forming thickness: 0.3mm—0.8mm zinc and color steel, G250MPA
8: Transmission: by single Chains 1.0 inch
9: feeding and guide: surface polished and coated with chrome
10: machine drive parts adopt protect cover
11: machine adopt new station with chrome
12: size of main machine: max 8000x1300x1200(mm)?? L x W x H
13: weight: about 5500Kgs
14: color of machine: blue (also can choose by customer request)
15: machine should be with four legs (made from metal) in 350mm
?
?

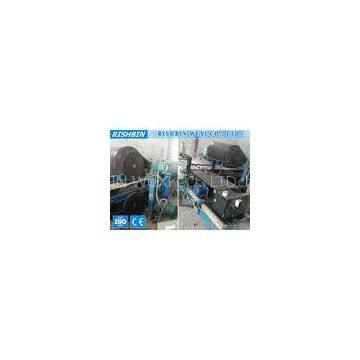

Uncoiler For Material? Feeding --------------Two sets

?
PU Insulation part

?
?
?
Constituents of Equipment
?
One “1+1” double-layer laminator for CORRUGATED panel
?
The laminator is used to make sandwich panels with the max. lenth of 6m, max. width of 1.0m and the thickness 30mm.
?
1.?Main technical parameters
Thickness of a sandwich panel????? 30mm
Max bearing force?????????????? 0.2Mpa/cm2
Moving speed of worktable??????? 15-20m/min
Pressing speed????????????????? 10~30mm/s
Working temperature of worktable?? 0~50℃
?
2.?Main machine
To be made up of the frame, chassis, slanting mechanism, rails and beam.
2. 1 Worktable
Worktables are made of extruded aluminum alloy.
worktable (is fixed),manual-feeding ,and mould locators are provided.
2. 2 Worktable heating system
It is made up of the medium heating installation, pump units, pipes and suitable temperature control. (Two sets, one on the right, the other on the left)
2. 3 Electric control system
Adopting central control by a panel, the system is equipped with fitting press buttons, relays, temperature control instrument, etc..
?
