6m 7m 8m Construction Prestressed Concrete Poles for electronic ISO.Used for electronic concrete pol
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
6m - 13m Round Spun Prestressed Concrete Poles For Electricity Distribution
-
Professional Unbreakable Prestressed Concrete Poles Red / Yellow.Mainly manufacture technology is lo
-
Yellow Electric Prestressed Concrete Poles Precast Concrete Pole ISO
-
Green Construction Prestressed Concrete Poles For Electricity Power Transmition
-
Red Round Spun Prestressed Concrete Poles High Efficient 6m - 13m
-
Silver / Yellow Spun Precast Prestressed Concrete Poles Plant ISO
Product Details
| Brand Name | SUCCESS | Place of Origin | China | |
Product Description
Certification:ISO
Working Principle:
1. The steel mould should work together with pole spinning machine. The steel mould should be placed on the spinning machine smoothly.
2. Put the mixed slurry into the mould and rotate in different directions under the motor driven.
3. In this process, the redundant water in the concrete is released by the force of centrifugal, and the concrete is dense and high strength. And then, the pole forms around the inner wall of the pole mould.
Description:

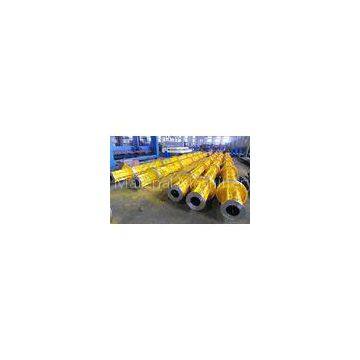

This mould is used for electronic concrete pole making. Its mainly manufacture technology is longitudinal tension by steel wires. Then it can squeeze out the excess water in the concrete under the centrifugal force. Thus, it can greatly improve the concrete density and strength.
In order to form the concrete more quickly to meet the design strength of more than 70%, steam curing can be carried out so as to shorten the mould-releasing cycle.
Our factory products two categories of Pre-stressed concrete pole steel moulds, DMZ&DMD. The Pre-stressed Electric Poles by this series equipment comply with the China Standard JC/T364-2001.
Technical Parameter:
|
|
Length (m) |
Tread (m) |
Running Wheel Diameter (mm) |
Length (m) |
Tread (m) |
Running wheel diameter (mm) |
|
100 |
6-7 |
2 |
/ |
/ |
/ |
/ |
|
130 |
6-8 |
|||||
|
150 |
6-11 |
|||||
|
170 |
7-12 |
|||||
|
190 |
7-13 |
15 |
2 |
650 |
||
|
230 |
6-9 |
12 |
||||
|
270 |
6 |
9 |
||||
|
270 |
6 |
9 |
||||
|
283 |
6 |
600 |
/ |
/ |
||
|
310 |
6-9 |
650 |
/ |
/ |
||
|
350 |
6 |
9 |
700 |
|||
|
390 |
6 |
700 |
9 |
750 |
||
|
430 |
6 |
750 |
/ |
/ |
||
|
470 |
6 |
780 |
/ |
/ |
||
|
510 |
6 |
800 |
9 |
850 |
||
|
550 |
6 |
850 |
/ |
/ |
?Technical parameter of pole steel mould
|
Parameter Specs |
Top diameter Φ0(mm) |
Length (mm) |
Tread of wheel (mm) |
Tread diameter of running wheel ΦP(mm) |
Tread width of running wheel B(mm) |
Taper |
|
DMZ1507-10 |
150 |
7000~10000 |
2000 |
600 |
95 |
1:75 |
|
DMZ1908-14 |
190 |
800 |
