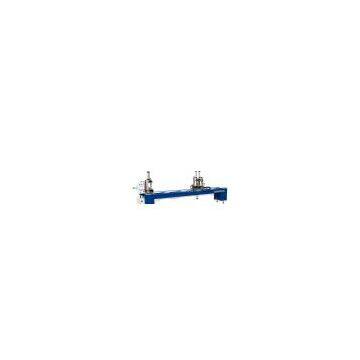

Sell Two Head Welding Machine

Place of Origin	China

Model No.:SHZ2HB-260x4000
Product Origin:China
Brand Name:CHENHE
Price Terms:
Payment Terms:T/T, L/C
Certification:
Description:Features: 1) Used for general profile and colored profile corner welding, and the seamless cleaning of colored profile 2) Two types welding (2mm-seam general welding and 0.2mm-seam colored profile seamless welding)is available and can be transferred by adjustment 3) The max. welding height reach to 260mm, and two pieces profiles welding (less than 120mm) at one time is available by change the double layer profile fixture 4) Key parts adopted linear bearing guide system, increased processing precision 5) Adjustable positioning distance, heating distance and feeding distance, ensured the optimal welding quality. 6) Special profile fixture is easy to change, for high corner strength and later good cleaning effect 7) Compact structure, convenient for adjusting Parameters: 1) Operation Air Pressure: 0.5 - 0.7MPa 2) Air Consumption: 40L/min 3) Power Supply: 220V 60Hz 4) Input Power: 2.5kW 5) Internal Diameter of Air Tube: 10mm 6) Temperature: 10 - 40 oC 7) Overall Dimensions: 5,000x1,250x1,740mm (length x width x height) 8) Machine Weight: about 1,000kg
