Home > Products > Wire rope clips > US Type Wire Rope clip/clamp/grip

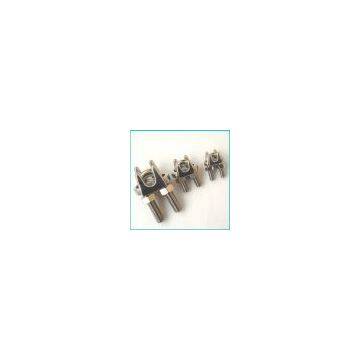

US Type Wire Rope clip/clamp/grip
US$ 0.5$ - 0.5$
/ Piece
500 Pieces(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | XingYu | Place of Origin | China | |
| Model Number | XY04-03 |
Product Description
| ART.NO | SIZE | Weight | Dimensions(in.) | ||||||
| in. | kgs | D | G | C | A | E | H | B | |
| XY04-0301 | 1/8 | 0.010 | 12 | 20 | 1411 | 7/32 | 10 | 23 | 18 |
| XY04-0302 | 3/16 | 0.020 | 15 | 23 | 14 | 1/4 | 12 | 29 | 24 |
| XY04-0303 | 1/4 | 0.025 | 19 | 30 | 15 | 5/16 | 16 | 36 | 26 |
| XY04-0304 | 5/16 | 0.044 | 22 | 33 | 19 | 3/8 | 18 | 43 | 35 |
| XY04-0305 | 3/8 | 0.080 | 25 | 41 | 19 | 7/16 | 23 | 49 | 38 |
| XY04-0306 | 7/16 | 0.152 | 30 | 46 | 25 | 1/2 | 26 | 58 | 47 |
| XY04-0307 | 1/2 | 0.252 | 30 | 48 | 25 | 1/2 | 28 | 58 | 47 |
| XY04-0308 | 9/16 | 0.290 | 33 | 52 | 32 | 9/16 | 31 | 63 | 47 |
| XY04-0309 | 5/8 | 0.440 | 33 | 52 | 32 | 9/16 | 34 | 63 | 60 |
| XY04-0310 | 3/4 | 0.680 | 38 | 57 | 36 | 5/8 | 35 | 72 | 70 |
| XY04-0311 | 7/8 | 0.750 | 44 | 62 | 41 | 3/4 | 40 | 80 | 79 |
| XY04-0312 | 1 | 0.895 | 47 | 66 | 46 | 3/4 | 45 | 88 | 89 |
High Polished Stainless Steel - AISI 316/304
