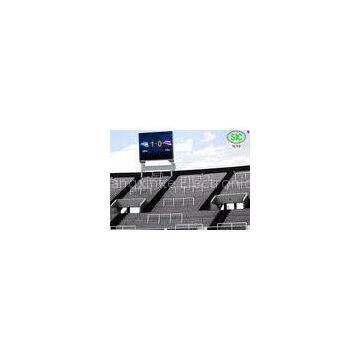

Large Outdoor Stadium LED Display , Commercial Center PH10mm Video LED sign

Brand Name	SCXK		Place of Origin	China
Model Number	P10

Delivery Time:10 working days after received your payment
Certification:CE/ROHS/FCC/SGS
10 mm SMD and DIP Full color ?high quality stadium ?Led Display With 16dots x 16dots Resolution ?With more than 8 years experience, our led display enjoy good reputation . The stadium P10 full color led display is very high definition and brightness,its’ very attractive and hot sell. SMD and DIP technology available. With the against-hitting mask design. The strong back support. Easy to assemble and dismantle 2years warranty and more than 10 years life use The indoor power supply and More cabinet to be choose

The feature of our led display as follows:

The detailed parameter as follows.

1,? Item Name	? technology parameter
2,? pixel tube:	?? pixel pitch:10mm; ?primary colors: pure red+ pure green +pure blue; ?? color composing:3 in 1 or 1R1G1B ?? Density 10000dots/sq m; SMD3528 and DIP346
3 , unit box	? module size:160mm×160mm;? Module resolution:16X16 ? cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;
4, whole screen:	the optimum viewing angel :horizontal 110°, vertical 50° viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C ?optional) ???relative humidity:≤95%RH;?? Drive IC ET6024?
5, operating voltage	AC220V±10% or 110V±10% ,average consumption:500 W/sq m ??max consumption:≤650 W/ sq m
6, main parameter	1) driving mode: 1/4 scan 2) refreshing rate:≥400Hz/s 3) frame frequency:≥60Hz/s 4) gray scale/color:≥16.7Mcolors(Synchronized) 5) manage gray:≥72bit 6) brightness:≥2000cd/sq m 7) color temperature condition:3500K~9500K,be adjustable 8) adjusting style of brightness: hand movement/auto 9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable. 10) average trouble-free time:≥5000hours 11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm 12) switch power loading:5V/40A 13) display mode of computer:1024×768

Applications:?

The stadium full color?led display is very popular in LED display advertising field.?This type digital?billboards are widely used??stadium.

?2. Features?:

Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system

and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Super brightness stadium full color LED?billboard advertising

1, Superb? brightness? and color uniformity and reproduction.? Brightness? variances? within2.5%

2, High? reliability:? data? hot? backup? aims? to? avoid? any? communication? risks? during? the? show;? support automatic fault detection

3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition

?Methods for Quality Assurance

a. Aging

1. 100% fully test

Condition: 72 hours with 256 gray level

b. Vibration Testing

Condition: 3-5 min up and down in 5mm range

Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.

Competitive Advantage:

1.??2 years’ warranty with free repair service

2.??24/7 Hours online Remote Support

3.??Solution and PCB design

4.??Free factory training

5.??On site installation instruction and regular inspection

6, ?Small?order?accepted.
