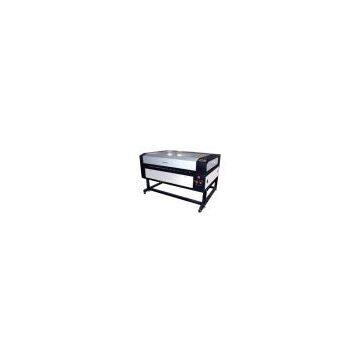

Laser cutter

Laser power:

80W(optional)

Laser type:

Hermetic CO2 glass tube

Power supply:

AC220±10%50 HZ/AC110±10%50 HZ

Working area:

1200mm*900mm / 1200mm*800mm

Max moving speed:

1500mm/s

Worktable:

Honey comb worktable/aluminiumknife/steel nail(optional)

Locating precision:

<0.01mm

Min shaping character: 　

Character:3*3mm,letter:2*2mm

Operating temperature:

5oC-35oC

Resolution ratio:

4500dpi

Control configuration:

DSP

Data transfer interface:

USB(offline)

System environment:

WINDOWS 2000/WINDOWS XP

Cooling way:

Water cooling and protection system

Graphic format supported:

The file which CoreDraw,Photoshop,AutoCAD can dentify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,
DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,
SVGZ,PCT,FMV,GEM,CMX)

Compatible software:

CorelDraw,AutoCAD

Cutting thickness:

0-20mm(depends on different material)

Color separation:

Separation of cutting up to 256 colors

Sloping engraving:

Yes,slope can be designed discretiarily

Cuts off the water supply the protection:

yes

Machine dimension:

1.91m*1.44m*1.4m /1.91m*1.43m*1.3m

Weight:

375kg

Packing:

Plywood case

Optional parts:

High-grade cooling system
imported focus lens
duoble-head cylinder rotary attachment
irregular rotary attachment
servo motor/red dot
