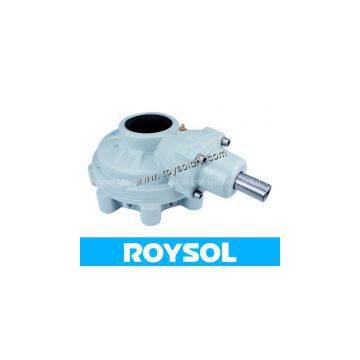

RB Multi-turn spiral bevel gearbox, valve gearbox, gear operator, gear actuator

Application
RB series multi-turn spiral bevel gearboxes are used for manual or electric (with electric actuators) operation. It's suitable for gate valves, globe valves, sluice and sluice gate.

Operating Environment
RB series multi-turn spiral bevel gearboxes are with good mechanical quality and steady operating performance which apply to deal with variety climate and temperature. We strive to develop RB series spiral bevel gearbox to meet higher demands.
● Enclosure: IP67 (IP68, IP65 optional)

● Working Temperature: From-40℃ to 120℃( -40℉ to 248℉)

● Painting: Sliver grey (Customization)

Introduction

Roysol RB multi-turn spiral bevel gearboxes series with spiral bevel gear used is in high quality and safety. Compared to conventional bevel gearbox it' s with high transmission efficiency, superior bearing capacity, low noise, steady running etc. RB series is completely sealed with good waterproof performance. It is easy to process axis hole and key groove because of the removable sleeve. RB series spiral bevel gearbox consists of both manual and electric operation, flange standard according to ISO 5210.

Characters
1. Totally enclosed gearing
2. Grease filled for longer life
3. Comprehensive gear ratios for differentapplications
4. Removable output sleeve
5. Optional output connection
6. Manual and electric operation
7. Sealed structure, protection to IP67 (IP 68 optional)

Connect With Valve
The flange connecting to valve is according to ENISO5210 or DIN3210 (Customization)

Drawings
