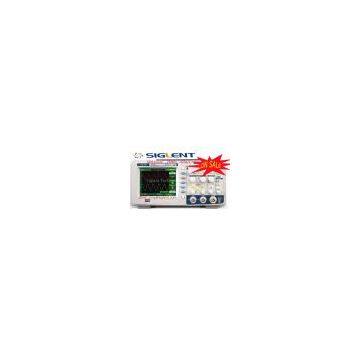

Supply Digital Storage Oscilloscope (25MHz)
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
Brand Name | Siglent | Place of Origin | China | |
Model Number | SDS1022C |
Product Description
1.Design and debuge in electron circuitry
2.Industry controling and power measure
3.View moment signal
4.Test in the manufacture
5.Education and trainning
6.Serving and maintaining
Technical parameters:
Bandwidth: 25MHZ
Channel: 2 channels+1 ext trig
Real Time Sampling: 500MSa/s
Equivalent Sampling Rate: 50GSa/s
Memory Depth: 4K/CH
Rise time: <14ns
Input Impedance: 1M||17Pf
Sec/div Range: 25ns/div-50s/div
Roll: 100ms-50s/div
Vertical Sensitivity: 2mv-5v/div(1-2-5 sequence)
Vertical Resolution: 8bit
Display: Color TFT(320*234)5.7" LCD
Input coupling: DC, AC, GND
Trigger Types: Edge, Pulse, Video, Slope, Alternative
Trigger Source: CH1,CH2,Ext,Ext/5,AC Line
Math: +,-,*,Invert
Languages: Chinese, English, Spanish, French, Portuguese, Italian, Russian etc
Power: 100-240VAC,47HZ-440HZ,50VA Max
Dimension: 305mm*154mm*133mm
Weight: 2.3kg
