Home > Products > Oil Heating Pump > PTFE Dynamic Seal Dyeing, Road Laying Hot Oil Heating Pump

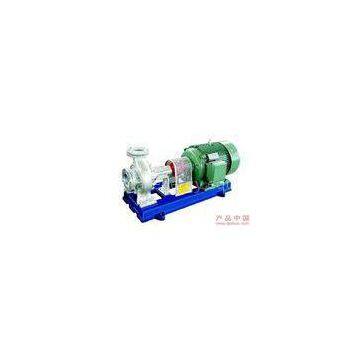

PTFE Dynamic Seal Dyeing, Road Laying Hot Oil Heating Pump
US$ 1 - 1
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Light Mordant Fluid Synthetic Fiber, Plastic Hot Oil Heating Pump , WRY-100-50-200
-
Low Noise Cantilever Plastic, Rubber, Textile Hot Oil Heating Pump
-
Yellow, Light Brown Antioxidant Non - Toxic Thermal Transfer Fluid
-
High Temperature Art WD-300h Oil Thermal Transfer Fluid For Chemical Petrochemical
-
Antioxidant Petrochemical Thermal Oil / Thermal Transfer Fluid
-
Rubber / Wood Industrial Autoclave Of Large-Scale Steam Equipment , 1.65m
Product Details
| Brand Name | OLYMSPAN | Place of Origin | China | |
| Model Number | WRY |
Product Description
Certification:CE, ASME
PTFE Dynamic Seal Dyeing, Road Laying Hot Oil Heating Pump
Quick Details:
1, PTFE dynamic seal
2, axial suction design
3, low energy consumption
4, single-stage, single-suction, cantilever type
5, WRY-150-125-270
PTFE?Dynamic?Seal,?Axial?Suction?Printing,?Dyeing,?Road?Laying?Hot?Oil?Heating?Pump,?WRY-150-125-270
Competitive Advantage:
It adopts single-stage, single-suction, cantilever type and foot supporting structure. Input is axial suction design, output center is vertically upwards, and they are fixed to the foundation with the motor.
Use PTFE dynamic seal, having a credible sealability and no leak. Structure is simple, maintenance cost is low, no additional cooling device, and operation cost is low. High performance, high efficiency, low noise, low energy consumption and have a long stable operation. Choose proper type of pump according to the working condition. Please note us if you need anti-blast electrical motor. Please list the specifications such as Capacity, Head, Inlet pressure, Medium pro-portion, Temperature, etc, if you need special type.4.?? We recommend diesel motor in order to prevent from the damage of sudden power off.
Description:
WRY series hot oil pumps have a widely use in the organic carrier heat system, which has been used in petrochemical, oil production, plastic, rubber, textile, printing and dyeing, synthetic fiber, road laying and other industries. It is mainly used to pump light mordant high temperature fluid, which without solid particle. The temperature is usually below 350℃. And we also can use special material in fluid components to make it deliver some corrosive or special property fluid according to uses’ requirement.
Specifications:
| NO | TYPE |
FLOW (m3/h) |
HEAD m |
?RPM | POWER(kw) |
EFFICIENCY (%) |
NPSH (m) |
|
| SHAFT | ADOPTED | |||||||
| 1 | WRY25-20-120 | 2 | 20 | 2840 | 0.36 | 0.55 | 30 | 1.2 |
| 2 | WRY25-20-125 | 3 | 20 | 2840 | 0.55 | 0.75 | 30 | 1.4 |
| 3 | WRY50-32-150A | 5 | 25 | 2840 | 1.0 | 1.5 | 34\' | 1.6 |
| 4 | WRY50-32-150 | 8 | 22 | 2840 | 1.1 | 1.5 | 43.5 | 1.8 |
| 5 | WRY50-32-160 | 10 | 25 | 2840 | 1.5 | 2.2 | 45.2 | 2.0 |
| 6 | WRY50-32-170 | 12.5 | 32 | 2900 | 2.4 | 3.0 | 45.7 | 2.4 |
| 7 | WRY65-50-170 | 29 | 32 | 2900 | 3.4 | 4.0 | 55.8 | 2.6 |
| 8 | WRY65-50-170 | 40 | 25 | 2900 | 4.5 | 5.5 | 60 | 2.7 |
| 9 | WRY65-50-180 | 20 | 38 | 2900 | 4.0 | 5.5 | 52 | 2.7 |
| 10 | WRY80-50-170 | 60 | 25 | 2900 | 6.7 | 7.5 | 61 | 2.9 |
| 11 | WRY80-50-180 | 40 | 40 | 2900 | 7.0 | 7.5 | 63 | 2.9 |
| 12 | WRY100-65-190 | 60 | 38 | 2900 | 9.1 |
