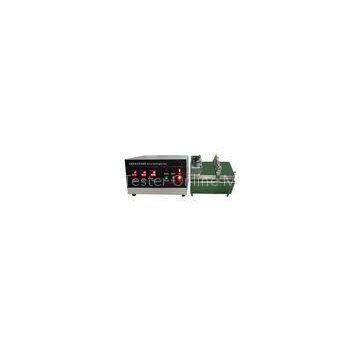

IEC 60811-1-4 Wire Cable Low Temperature Elongation Test Equipment

Wire Cable Low Temperature Elongation Test Equipment

Product information:

This test apparatus conforms to the standard requirement of IEC 60811-1-4,VDE 0472 Part 616,?GB/T2951.14.8.3-2008. It is applicable for the insulating sheath of the high polymer material, electric wire, rubber, and plastic to do the tensile test at the environment of -35°~0°.

Technical parameters:

1, Maximum degree of drawing:220mm

2, Tensile speed:20～30mm/ min?

3, Chuck mode:not self-tight type

4, specification of sample:ⅠⅡ dumbbell sheet

5, The number of test sample once:3?????

6, Displacement measurement:±1mm

7, Displacement measurement:the precision is digital displayed

8, Total power:480W

9, Motor power:185W

10, Power voltage:220V???

11, Dimension:425×245×280mm
