Portble Single Phase Energy Electric Meter Tester And Calibration 20V 420V
- T/T L/C D/P D/A
- 7 days
You May Like
-
Three / Single Phase Portable Meter Tester For Auto Electric Meter Test Calibration
-
3 Phase Portable Energy Meter Tester With Large Color Display Screen 1000A
-
Standard 1 Phase Electrical Portable Meter Tester With Clamp CT , 20v 420v
-
Stainless Steel Tension Test Clamp with Sharp Mouth For Toy Testing
-
GB4706-2005 Portable Thermocouple Welder Safety Impact Testing Machines 50HZ 200VA
-
IEC 60811-1-4 Wire Cable Low Temperature Elongation Test Equipment
Product Details
| Brand Name | KRE | Place of Origin | China | |
| Model Number | KE7202A |
Product Description

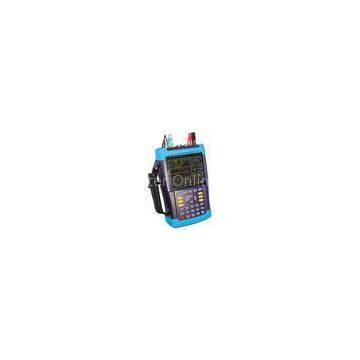

Portble Single Phase Energy Electric Meter Tester And Calibration 20V – 420V
?Single Phase Energy Meter On-site Tester?
Name: Portble energy meter tester, electric meter tester,?electricity meter tester Phase: Single Phase Accuracy Class:? ±0.1% Usage: Auto Electric meter test and calibration Power: Electronic Voltage Range:? 20V – 420V Current Range: 5A, 100A, 500A, 1000A Display waveform of voltage and current, Current measure with clamp CTSingle Phase Portable Meter Tester, 0.05% Accuracy Energy Meter Calibrator
KE7202 portable single phase standard meter is used for the field test of the single phase energy meters and electrical parameters of the circuit by electric power companies, meter manufacturing companies and institutes of metrology.
Highlight: ?Current measure with terminal input or clamp CT ?Display waveform of voltage and current ?Analyze and display 2nd – 51st harmonic of voltage and current at real time ?Energy accumulating test (Dial test) ?Test ratio of current transformer in low voltage circuit ?Real time clock, accurate record testing time ?Store, browse and transfer measured data ?Real-time measured data by PC, and download calibration parameter ?Battery, test lead power or external power for choices Support the barcode scanner to input number of energy meter automatically (optional) ? Main specifications:|
KE7201-0.3 |
||
|
Voltage measurement |
||
|
Voltage range |
20V – 265V |
|
|
Accuracy |
±0.1% |
|
|
Harmonics |
2nd- 51st |
|
|
Current measurement |
||
|
Current range |
Terminal input |
0.1A – 20A |
|
Clamp input |
5A,20A,100A,500A,1000A,2000A,3000A |
|
|
Accuracy |
Terminal input |
±0.1% |
|
Clamp input |
±0.2% (5A ,20A),±0.5% (other) |
|
|
Harmonics |
?????????????????????????????????????? 2nd- 51st |
|
|
Power measurement |
||
|
Active power |
Terminal input |
±0.1% |
|
Clamp input |
±0.2% (5A ,20A),±0.5% (other) |
|
|
Reactive power |
Terminal input |
±0.3% |
|
Clamp input |
±0.5% |
|
|
Energy measurement |
||
|
Active energy |
Terminal input |
±0.1% |
|
Clamp input |
±0.2% (5A ,20A),±0.5% (other) |
|
|
Reactive energy |
Terminal input |
±0.3% |
|
Clamp input |
±0.5% |
|
|
Phase measurement |
||
|
Phase range |
0 -- 360° |
|
|
Accuracy |
±0.1° |
|
|
Frequency measurement |
||
|
Frequency range |
45Hz – 65Hz |
|
|
|
