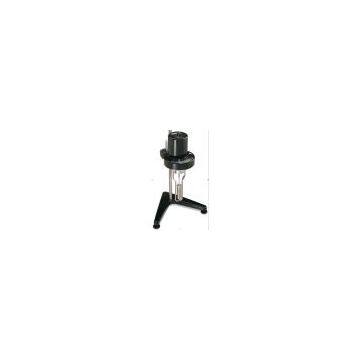

Brookfield viscometer dial

Brand Name	Guoao		Place of Origin	China
Model Number	LVT RVT HAT HBT

Models	LVT	RVT	HAT	HBT
Speed	0.3-60RPM	0.5-100RPM	0.5-100RPM	0.5-100RPM
Speed type	8	10	10	10
Testing range	15——2Mcp	100-8Mcp	200-16Mcp	800-64Mcp
feature	Standards of the world's most classic viscometer, and ease of installation, simple operation, very cheap prices.
Compose of	Host, a set of 4 rotors (LV model) or six rotor (RV / HA / HB models), the rotor to protect the legs (HA, HB models do not), A-type frame, the box
precisio	±1%
Reproducibility	±0.2%
Digital Display	no
Temperature monitoring	no
software	no
Rotor Number	4 or 6
Instrument panel display information	Torque%
Constant can choose to annex.	Constant temperature water bath, a small amount of sample adapter SSA, ultra-low viscosity adapter ULA, lifting frame, propeller-type rotor, Thermosel heater, DIN adapter, screw the adapter, CP (cone-and-plate viscometer), the standard viscometer oil.

Viscometer dial

1. Measurable viscosity range: LVT :1-2M RVT :100-8M HAT :200-16M HBT :800-64M

2. Measuring Accuracy: ± 1% repeatability: ± 0.2%

3. Unit: cP which 1M = 1 million = 1000000

4. Speed: Range: 0.3-60RPM 0.5-100RPM speed: 8 of 10

5. Rotor number: LVT: 4 root RV / HA / HBT: 6 root

6. Data display: analog output (torque% showed easily converted into cps / cP)

7. The characteristics and advantages: the world's most classic standard viscometer, and ease of installation, simple operation, very cheap prices.

a) dial Viscometer: Use dial viscometer to measure viscosity of various fluids through the received torque%, can be easily converted into cps value. In accordance with the scope of different viscosity fluids choose a different model (viscosity measurement range: LVT :1-2McP RVT :100-8McP HAT :200-16McP HBT :800-64McP).

b) Viscometer dial + a small amount of sample adapter adapter can be used for a small number of samples must be measured under shear rate viscosity of the fluid samples only need the amount of 2ml-16ml. If we add water, it can bring the water jacket of the sample in the temperature measurement of fluid viscosity, so as to ensure the accuracy of viscosity measurement. Proposals: such configuration options are generally very small amount in the measurement of the sample or samples of a very high price to use. Note: The adapter can not be a small number of samples is less than the value of measuring the viscosity of the fluid 1cP viscosity (viscosity measurement range: up to 20McP).

c) Viscometer dial + ultra-low viscosity adapter ultra-low viscosity adapter specifically designed to measure the viscosity of low viscosity fluid, for the Newtonian fluid and non-Newtonian fluids are applied, the viscosity of which LV model range for 1cp-15cp. Ultra-low viscosity adapter can be the accurate measurement of low viscosity fluid viscosity and shear rate can be specified under the measure. Recommendations: in the measurement of viscosity of small samples can be used, but the ultra-low viscosity adapter can not be less than the value of measuring the viscosity of the fluid 1cP viscosity (viscosity measurement range :1-2KcP).

d) viscometer dial + movements stent stent for take-off and landing tests jelly, paste, body cream, putty putty, gelatin and other non-Newtonian fluid viscosity designed to keep the viscosity measurements consistent to have a pseudoplastic behavior and thixotropy of the fluid viscosity measurement has a good effect. Stent only fluid movements to the single point viscosity measurement, the fluid can not flow curve drawn. Recommendations: When measuring samples with a pseudoplastic or thixotropic property, the use of ordinary viscometer to measure viscosity fluid such selected configuration, such as: cosmetics, yogurt (the highest range of viscosity 160McP).

e) viscometer dial + paddle-type rotor blade when the rotor in the sample immersed in the destruction of the structure of the sample at least, you can maintain a state of suspended particles in the sample, and can map the flow of data in accordance with the viscosity curve analysis, but also in low-speed fluid yield stress measurement and analysis of fluid behavior of the yield information. Recommendations: the main rotor blade for food, cosmetics, sealing materials, such as measuring the viscosity of fluids, but also can be used to have a yield to the yield stress fluid behavior measurements. Note: The propeller-type rotor only and RV / HA / HB with the use of such models can not be used together and LVT models (Viscosity measuring range: up to 2.14McP).

f) viscometer dial + Thermosel heater heater Thermosel is to solve the heat and high temperature liquid sol viscosity measurement process needs a relatively high accuracy when the temperature in order to ensure the accuracy of the data obtained from specially designed, Thermosel heating can provide customers with stable, accurate temperature measurement of the sample environment, the use of Brookfield viscometer with their high accuracy, makes the measurement results is not only accurate, but also a very good reproducibility. Recommendations: measurement of liquid viscosity and high temperature hot melt adhesive is required to have precise temperature control to ensure the accuracy of the measurement results, and the heater can be done Thermosel (viscosity measurement range: up to 16McP).

g) viscometer dial + DIN adapter adapter in line with the German DIN standards - DIN 53019, this accessory is that only a small number of samples to customers designed it, and a small amount of sample adapter is similar to the sample volume of only 16ml -20ml. The cylindrical rotor can shear rate calculation. Recommendations: the use of German rather than U.S. standards can choose to friends this configuration (viscosity measurement range :1-50000Cp).

h) viscometer dial spiral + spiral adapter adapter is to test the paste is very dense objects such as solder paste, cosmetics, medicines, food and other non-Newtonian fluid viscosity designed adapter can provide a wide range of spiral shear rate to detect fluid pseudoplastic behavior and thixotropy. Screw adapter can automatically measure the rheological curve of material integrity. Recommendations: in the RV / HA / HBT under high-torque screw adapter with the use of such paste mainly used to study the rheological properties (viscosity measurement range: LVT: to 100K RVT: to 1.1M HAT: to 2.2 M HBT: to 9.0M).
