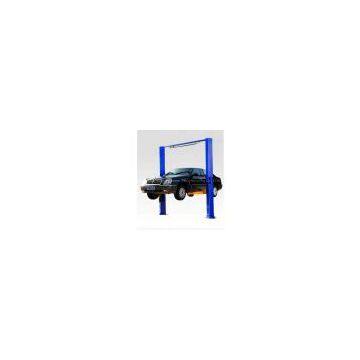

Two Post Auto Lift_2 post car lift_hydraulic lift supplier_vehicle lift

1.30 Degree rotated columns

2.Maximum door opening for improved access

Model TPO310 Series The Lift Build For You

3. 14 step automatic safety system

4. Auto electric shut off with padded stop bar

5. Automatic arm restraints

6. Cable adjusting window on each lift carriage for easy installation

7. Dual direct drive hydraulic cylinders

8. Enforced carriage cross tube is more than 50% stronger than competition

9. Free truck and van adopters

10. Inside hose installation decrease the possibility of hydraulic hose damage

11. Maintenance free UHMW carriage slider blocks

12. Plastic powder coating for durability and environment safety

13. Pre-extended aircraft cables for equalization

14. Single piece column for maximum strength

15. Taller lift carriages to minimize stressm on columns

Specifications: (As per one set)

Lifting capacity

10000LB/4.5T

Overall height

3672mm

Overall width

3340mm

Maximum lifting height

1850mm

Motor capacity

2.2kw/3HP

Drive through

2236mm

Lifting time

60s

Width between post

2544mm”

Min. pad height

130mm

N.W.(Kg)

730

G.W.(Kg)

740

L×W×H(mm)

3800*770*500
