Home > Products > Cage Hoists > Double Cabin Construction Cage hoists Material lifting Equipment for civil architecture

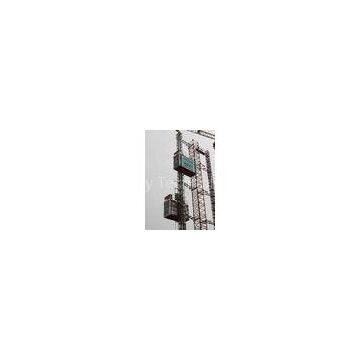

Double Cabin Construction Cage hoists Material lifting Equipment for civil architecture
- T/T L/C D/P D/A
- 7 days
You May Like
-
3200kg High Capacity Single Cage Hoists with Mast Hot-dip Galvanized
-
Rack and Pinion Builder Cage Hoists , 2700kg Construction Elevator for Industrial
-
Mast Hot-dip Galvanized Cage Hoists Lifting Equipment with VFC Control
-
150m Lifting Height Personnel and Material Hosit 1600kg for Contruction Site
-
Construction Lifting Equipment Double Cage Hoists for Materials and Personnel
-
Custom OEM Cage Hoists Elevator With Multiple Door , High Reliability
Product Details
| Brand Name | BORUIDA | Place of Origin | China | |
| Model Number | SC-series |
Product Description
Certification:CE,ISO
?
?
Manulramp door of SC 320 double car Cage hoists lifting Speed 0 ~ 60m / min
?
?
Quick Detail:
?
|
Name |
Other Name |
Brand Name |
Control |
|
Builder Hoist |
Builder Hoist SC 320/320 |
BORUIDA |
DOL and FC |
|
Loading Capacity |
3200kg/3200kg |
Certificate |
CE |
?
?
Description:
?
Builder Hoist SC 320/320 is installed and dismounted conveniently and can grow as high as the building grows height.The Builder Hoist has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
It is efficient and safety vertical transporting equipment
?
?
Applications:?
?
SC serialization of products Builder Hoist is a Rack and Pinion EL. Builder Hoist widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.?
?
?
Specifications
Standard?technical datas of? double cages:
|
Parameter |
SC100/100 |
SC160/160 |
SC200/200 |
SC270/270 |
SC320/320 |
|
Rated |
1000/1000 |
1600/1600 |
2000/2000 |
2700/2700 |
3200/3200 |
|
Rated lifting speed |
0~40 |
0~40 |
0~60 |
0~60 |
0~60 |
|
Rated passenger number |
12/12 |
18/18 |
24/24 |
30/30 |
38/38 |
|
Max. lifting height(m) |
150 |
200 |
450 |
450 |
450 |
|
Engine power(kW) |
2*2*9.5 |
2*2*11 |
2*2*13 |
2*3*18.5 |
2*3*22 |
|
Cage?inner dimension |
3*1.3*2.5 |
3*1.4*2.5 |
3*1.5*2.5 |
3.2*1.5*2.5 |
3.6*1.6*2.5 |
|
Cage?weight (kg) |
1400 |
1500 |
1800 |
1950 |
2050 |
|
Mast?section weight |
145 |
145 |
163 |
163 |
163 |
|
Mast section dimension (mm) |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
650*650*1508 |
|
Safety device type |
?SAJ30-1.2 |
SAJ40-1.2 |
SAJ40-1.4 |
SAJ40-1.4? |
SAJ50-2.0? |
|
Hanger rated lifting capacity |
250 |
250 |
250 |
250 |
250 |
|
Rack module |
8 |
8 |
8 |
8 |
8 |
SC series?builder hoists:?
1). Cage load capacity: 1000kg~3200kg;
2). Lifting speed:33m/min, 0~40m/min;0~60m/min;
3). Increased lifting height on request;
4). Mast section: Painted or hot dipped zinc?
5). Cage:double cage?
6). Recommended cage inner dimensions (L*W
