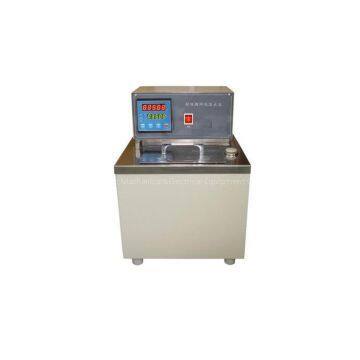

Laboratory Heating&Cooling Bath

GDH-501A Heating&Cooling Bath is a laboratory instrument specially designed and made for construction companies, research institutes, and colleges and universities. It adopts advanced digital temperature controlling techniques, so it is with high temperature controlling accuracy and the bath temperature is more stable.

GDH-501A Heating&Cooling Bath is not only used as a constant temperature bath, but also used as a circulation device for temperature controlling in other closed circulation system. It can also used together with the portable cooler of our company for low temperature test

II. Main technical specification and parameters

1. Power supply: AC 220V±10%, 50 Hz;

2. Bath cubage: Length 480×Width 330×Height 320 (mm);

3. Temperature controlling range: 10 °C more than room temperature to 70°C;

4. Temperature controlling accuracy: ±0.1°C;

5. Heating device: an electric heater; its power is 1000 W;

6. Bath circulation: automatically circulated by a magnetic circulation pump;

7. Ambient temperature: ≤30°C;

8. Relative humidity: ≤85%;

9. Total power consumption: not more than 1100 W;
