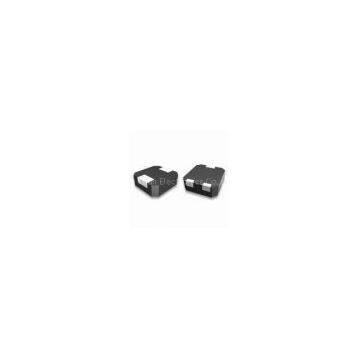

SMD Power Inductors

Brand Name	pairui		Place of Origin	China
Model Number	FACEP104,105,124,125

SMD Power Inductors with Inductance of 0.30 to 10μH, Low Resistance to Deep Power Loss Model Number: FACEP104,105,124,125 Key Specifications/Special Features: @ Low profile power inductor @ Low DCR SMD power inductor @ Large-current up to 75A SMD power inductor @ SMD Magnetically shield Power inductor @ Shielded SMD power chip inductor @ Magnetic shielded surface mount inductor with high current rating @ Low profile and shielded very effective in space-conscious applications @ Low resistance to deep power loss minimum @ Operating temperature: -20 to 85 degrees (contain heating coil) @ Appearance inspection: no external defect by visual inspection @ Terminal strength: after soldering, between copper plate and terminals of coil, push in two directions of X, Y with standing as below conditions @ Terminal should not peeled off @ Heat endurance of reflow soldering: 240 @ Insulating resistance: over 100M Ohms at 100V DC between wire and core @ Dielectric strength: no dielectric breakdown at 100V DC for one minute between wire and core @ Temperature characteristic: Inductance coefficient (0 to 2,000) x 10-6/(-25 to +80) inductance deviation within +/-5.0%, after 96 hours @ Humidity characteristic: in 90 to 95% relative humidity at 40+/-2 and one hour drying under normal condition. Inductance deviation within +/-5.0% after vibration for one hour @ Vibration resistance: in each of three orientations at sweep vibration (10-55-10Hz) with 1.5mm p-p amplitude @ Similar to coil craft and Toko, Sumida, TDK
