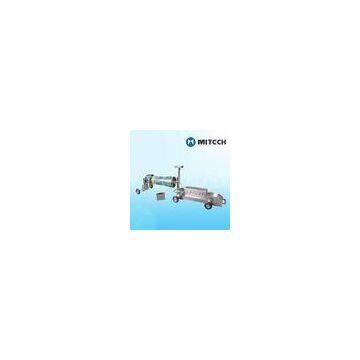

Magnetic Medium Control X-Ray Pipeline Crawler For φ323 - φ630 mm , φ529 - φ1200 mm Pipeline
Magnetic Medium control X-ray pipeline crawler MZY series
Description:
????? - This is new model with advanced technology, and updated principle
????? - The highlight is magnetic control, which is more convenient than video control (must be operated on the opening of pipeline), and better precision of locating. The efficiency is improved a lot, and the operation will be easier.
????? - Smaller, lighter, and easy to disassemble and install.
????? - Easy to operation, stable and reliable.
????? - Automatically move backward if low battery power, meeting water, meeting obstacles, over current, lack of current, over-temperature. Alarm as well.
????? - Automatically move back if no operation over forty minutes
Specifications:
|
Model |
Model MZY-3C |
Model MZY-10C |
Note |
|
Pipeline Diameter(mm) |
φ323~φ630 |
φ529~1200 |
|
|
Crawler Dimensions(mm) |
1480×220×170 |
1440×240×185 |
|
|
Control Device Dim.(mm) |
192×97×143 |
192×97×143 |
|
|
Weight(kg) |
65 |
75 |
|
|
Crawling Speed(m/min) |
16 |
16 |
|
|
Locating Tolerance(mm) |
±5 |
±5 |
|
|
Drive Type |
Two Wheels Driven |
Four Wheels Driven |
|
|
Climbing angle |
20° |
30° |
|
|
Swerving Radii |
≥10D |
≥7D |
|
|
Ray Radiation Angle |
360°×40° |
360°×40° |
|
|
Generator Dimension(mm) |
φ155×750 |
100KV tube |
|
|
φ195×780 |
160KV tube |
||
|
φ230×760 |
φ230×760 |
200KV tube |
|
|
φ230×700 |
250KV tube |
||
|
φ280×850 |
300KV tube |
||
|
Working Temperature |
-20℃~60℃ |
-20℃~60℃ |
|
|
Relative Humidity |
90％ |
90％ |
Standard Package:
|
No. |
Name |
Quantity |
|
1 |
Crawler dolly |
1 set |
|
2 |
Control system |
1 set(magnetic) |
|
3 |
X-ray generator |
1 set |
|
4 |
batteries |
1 set(125V) |
|
5 |
