Product Details
| Brand Name | DPK | Place of Origin | China | |
| Model Number | DPK-5352 |
Product Description
Certification:CE,ROHS, FCC

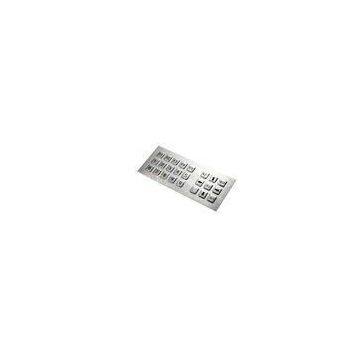

Customized Vandalproof metal keypad for spepcial application??
Quick detail:
Front panel: brushed stainless steel.
236 mm x 100 mm (Front Panel)??
Actuator/keys materials: stainless steel.?
G.W. 0.5KGs.?
No. Item Specification?
1 Model No. DPK-5352?
2 Dimension 236 mm x 100 mm (Front Panel)?
3 Description
24 keys compact format IP65 vandal-proof stainless steel numeric keypad, which is suitable for access controller, decoder optional?
4 Main Feature
key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.?
With firm tactile key feel, short travel switches, with unique double over-travel protection.?
Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
Easily mounting into enclosure or panel, and is provided with PS/2, or USB, RS232, connection output cables that plug directly into the host computer for normal keypad operations.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
COMMUNICATION PARAMETER
USB, PS2 or RS232 are all available.?
12 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. Any keys can be re-defined per customers\' requirements.?
5 Mechanical Data
Switching material: Gold-on-Gold.?
Actuation Force: 2.00.1N (pressure point).?
Key Travel: 0.45mm.?
Lettering: laser engraving, or raised letters.?
Front panel: brushed stainless steel.?
Actuator/keys materials: stainless steel.??
G.W. 0.5KGs.?
6 Electrical Data
Power supply voltage: 5V DC.
Power Consumption: Under 300mW for operation, under 200mW for non-operation.?
Electrical lifetime: > 5 years.?
EMC:EN55022(B).?
Communication interface: PS2, USB or RS232 are all available.
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20°C to +60°C.?
Storage temperature: -30°C to +70°C.?
Operating RH: 30-90%.?
Atmospheric pressure: 60-106Kpa.?
7 Reliability
RoHS Compliant, CE and FCC?
Protection Level: IP65(front panel)?
Vandal resistant IK10?
Key lifespan >5 million actuations .?
MTBF >20000h.?
MTTR <30min.?
