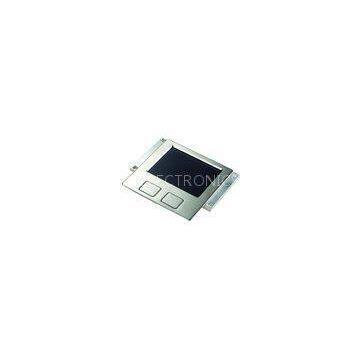

Panel Mount Vandalproof Industrial Waterproof Touchpad With Two Buttons For Outdoor

Panel Mount Vandalproof Industrial Waterproof Touchpad With Two Buttons For Outdoor

Quick detail

1) It is resistant to dirt, dust and liquid;
2) PS/2 or USB connecter are optional;
3) Mounting set and desktop set are optional
4) Power supply voltage: 5V DC.

No. Item Specification
1 Model No. DPK-2020 (DPK-TP2020)

2 Description
It is used for self-service kiosk and other terminal data imput;
It is compatible to WINDOWS98/ME/2000/XP;
It is resistant to dirt, dust and liquid;
It can be used in the open air and public place;
PS/2 or USB connecter are optional;
Mounting set and desktop set are optional.

?
3 Mechanical Data
Switching material: Gold-on-Gold.
Actuation Force: 2.00.1N (pressure point).
Front panel: brushed stainless steel.
Actuator/keys materials: stainless steel.
Dimensions: see engineering drawing
G.W.:0.2KG

4 Electronical Data
Power supply voltage: 5V DC.
Power Consumption: Under 300mW for operation, under 200mW for non-operation.
Electrical lifetime: > 5 years.
EMC:EN55022(B).
Communication interface: PS2, USB or RS232 are all available.
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20°C to +60°C.
Storage temperature: -30°C to +70°C.
Operating RH: 30-90%.
Atmospheric pressure: 60-106Kpa.

5 Reliability
RoHS Compliant, CE and FCC
Protection Level: IP65(front panel)
Vandal resistant IK10
Life >5 million actuations .
MTBF >20000h.
MTTR <30min.
?
