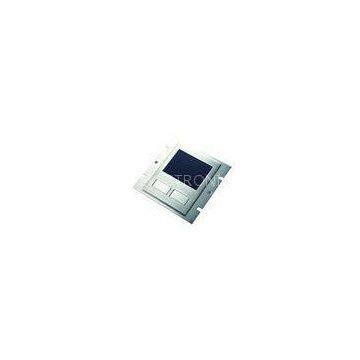

Flat Kiosk Waterproof Touchpad For Flexible Keyboard , Integrated Touchpad

Flat Kiosk Waterproof Touchpad For Flexible Keyboard , Integrated Touchpad

Quick detail

1) It is resistant to dirt, dust and liquid;
2) PS/2 or USB connecter are optional;
3) Mounting set and desktop set are optional
4) Power supply voltage: 5V DC.

No. Item Specification

1 Model No. DPK-2022

2 Description
It is used for self-service kiosk and other terminal data imput;
It is compatible to WINDOWS98/ME/2000/XP;
It is resistant to dirt, dust and liquid;
It can be used in the open air and public place;
PS/2 or USB connecter are optional;
Mounting set and desktop set are optional.

?
3 Mechanical Data
Switching material: Gold-on-Gold.
Actuation Force: 2.00.1N (pressure point).
Front panel: brushed stainless steel.
Actuator/keys materials: stainless steel.
Dimensions: see engineering drawing
G.W.:0.2KG

4 Electronical Data
Power supply voltage: 5V DC.
Power Consumption: Under 300mW for operation, under 200mW for non-operation.
Electrical lifetime: > 5 years.
EMC:EN55022(B).
Communication interface: PS2, USB or RS232 are all available.
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20°C to +60°C.
Storage temperature: -30°C to +70°C.
Operating RH: 30-90%.
Atmospheric pressure: 60-106Kpa.

5 Reliability
RoHS Compliant, CE and FCC
Protection Level: IP65(front panel)
Vandal resistant IK10
Life >5 million actuations .
MTBF >20000h.
MTTR <30min.
?
