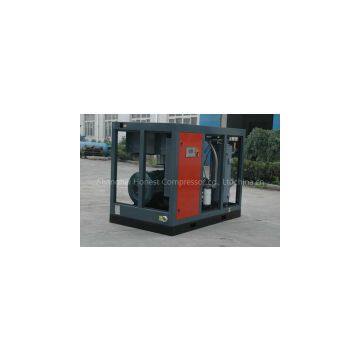

Air Cooling Screw Belt Drive Air Compressor 55KW 75HP Silent and Energy Saving
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
30KW 40HP Screw Belt Driven Air Compressor / Industrial Air Compressors High Power
-
110KW 150HP Belt Driven Screw Air Compressor for Textile , Medical , Pharmaceutical Materials
-
Viewing Transmission Belt Driven Screw Type Air Compressor 22KW 30HP 380V Three Phase 50Hz
-
Industrial Screw Type Belt Driven Air Compressor 18KW Energy Saving and Eco-friendly
-
Long Lifetime Belt Drive Screw Air Compressor 15KW Reliable and Energysaving
-
7.5KW 10HP Small Belt Driven Air Compressor for Industrial 380V 3 Phase 50Hz
Product Details
| Brand Name | OSG | Place of Origin | China | |
| Model Number | E-55AW |
Product Description
Detailed Product Description
| Product Name: | 55KW Air Compressor | Application: | Medical, Pharmaceutical Materials, Power, Electronic, Spraying, Tobacco, Instruments, Food Processing, Feed Processing, |
| Dimension: | 1900*1260*1600mm | Weight: | 1200kgs |
| Diameter Of Outlet: | 1” | Power: | 380V/3Phase/50Hz |
| Standard: | CE/ISO/SGS | Exhaust Temperature: | ≤ Ambient temperature +8℃ |
| Intake Air Temperature: | ≤ 45℃ | Noise: | 73±2dB |
| Oil Content: | ≈3 Ppm |
Textile, medical, pharmaceutical materials, power, electronic, spraying, tobacco, instruments, food
processing, etc.
Model:EU-55A | |||
Power(KW) | 55KW | ||
Horse(HP) | 75HP | ||
Pressure | Bar | PSI | |
7 | 100 | ||
8 | 115 | ||
10 | 145 | ||
13 | 188 | ||
F.A.D | m3/min | L/min | CFM |
10.8 | 10800 | 381 | |
10.2 | 10200 | 360 | |
9.0 | 9000 | 317 | |
7.2 | 7200 | 254 | |
Exhaust temperature | ≤ Ambient temperature +8℃ | ||
Intake air temperature | ≤45 ℃ | ||
Noise dB(A) | ≤73±2 | ||
Oil content (ppm) | ≈ 3 | ||
Power V/Pb/Hz | 380/3/50 | ||
Long(m) × Wide(mm) × High(mm) | 1900*1260*1600 | ||
Weight (kg) | 1280 | ||
Diameter of outlet | 2" |
