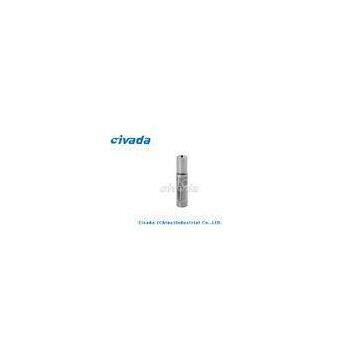

Dowel Holes precision ejector pins Straight with Air hole , HW treatment

Brand Name	CIVADA		Place of Origin	China
Model Number	EP-201

Delivery Time:5~7workdays after the order confirmed

Dowel Holes precision ejector pins Straight with Air hole , HW treatment

Surface?Coating Provide :

1. TiN?-?(?Titanium?Nitride?)?PVD?Coating?

Alteration?Order?Code?:?TIN?--?Add?3?days?to?Delivery

TiN?is?the?least?expensive?and?most?commonly?used?PVD?(?Physical?vapor?deposition?)?wear?resistant?

coating?offering?:?

Excellent?wear?resistance?on?cutting?edges?and?wear?surfaces? Excellent?lubricity? Suitable?thermal?stability?for?most?cold?work?metalworking?applications? High?microhardness?of?2300?Vickers?

Note?:?TiN?works?best?when?used?with?lubricants?and?is?not?recommended?for?uses?in?stainless?

steel,nickel?,or?copper?applications?

2. TiCN?-?(?Titanium?Carbon?Nitride)?PVD?Coating?

Alteration?Order?Code?:?TCN--?Add?4?days?to?Delivery

TiCN?has?the?broadest?range?of?application?use?regarding?PVD?coating?including?stainless?steel?,nickel?,and?

copper?metal?working?operations?offering?:?

?Higher?hardness?and?lower?coefficient?of?friction?and?thay?of?TiN?coating?,resulting?in?extremely?

? ? ? ? ? ??high?wear?resistance?on?cutting?edges?and?wear?sufaces?

?Improved?lubricity?Extremely?high?micro?hardness?of?3000?Vickers?

Note:?Suitable?for?uses?in?stainless?steel?,nickel?,or?copper?applications?

3. TiAIN?-?(?Titanium?Aluminum?Nitride?)?PVD?Coating?

Alteration?Order?Code?:?TAN--?Add?3?days?to?Delivery

TiAN?is?idea?for?application?where?suface?heat?generated?,which?converts?the?aluminum?constituent?to?

aluminum?oxide?for?added?protection?against?shear?stress?and?wear?resistance?on?cutting?edges?.

High?thermal?stability? ?Extremely?high?micro?hardness?of?3400?Vickers?

1. Material

?SKD11?/SKH51 / ?Power HSS?/?A2?/?M2?/?D2 /?Carbide?/?ASP23?/?Vanadis4?

?
2. Hardness

58?to?62HRC?or?depends?on?processing?materials

?
3. Specification?

Standards:?Dayton / Lane / DIN / ISO / Fibro / Moeller ?/ HASCO Tolarance?: g5 Further?dimensions,?lengths?and?materials?available?on?request Customized?sizes?are?accepted Shapes:?oblong,?square?and?hexagon Coating?service?TiN,?TiCN?and?Aitain Service:?made-to-order?and?standard?with?stock Good-quality?and?precision High precison ,finishing machining Working?speed:?180?to?220/min Polishing:?can?make?close?to?Ra?0.4?standard?is?R?0.8

?
?4. Machinery?&?Equipments

CNC?machining?center;?CNC?lathe;?Normal?lathe;?CNC?milling?machine; General?punching?machine,?CNC?turning?center;?Wire?EDM,?etc.? And?we?also?can?offer?4?or?5?axis-CNC?center?processes. General?milling?machine;?General?drilling?machine;?General?planning?and?grinding?machine?

?
?
Applications:?

Punching?Mold Automobile?Die Suitable?for?different?type?of?plastic?bag?making?machine Can?punching?for?0.01mm?single-layer?material?of?plastic?bag,paper,?non-woven?fabrics.?PE,?OPP,?PO,?PP,?PVC,?PPE,?PPU,?OPE?film ??

?
?
?Further?Information?

Testing? machine	Digital?Height?Gauge,?caliper,?Coordinate?measuring?machine,?projection?machine, ?roughness?tester,?hardness?tester?and?so?on.
QC	?1)?Technicians?self-check?in?production ?2)?Engineer?spot?check?in?production ?3)?QC?inspects?after?mass?production?finished ?4)?International?sales?who?were?trained?the?technical?know-how?spot?check?before?shipping
Main?Markets	North?America,?South?America,?Eastern?Europe?,?West?Europe?,?North?Europe,? South?Europe,?South?Asia,?Africa?Africa

??
?
Packing?&?Delivery?
?
?

	Package	Coated?with?anticorrosive?oil,?packed?in?carton?box? with?bubble?wrap,?together?with?QA?report.
Express	DHL,?FedEx,?UPS,?TNT,by?Sea?.

?
?
Main?products?

HSS?punch?,Precision?punch?,Ejector?punch?,Punch?ejector?pins,?Ball-lock?punches,?Punch?retaine Die?button Guide?pillars?,Guide?bushings?,Guide?post?set?,Ball?cages? Mold?ejector?pins?,Ejector?sleeves? Oiless?bush?,?Bronze?Wear?Plate

?


?
?
Spot?Light?of?CIVADA?

·?Factory?opened?more?than?12?years?

·?Factory?Size?:?1,000-3,000?square?meters

·?Reserch?&?Development?Group?:?8?people

·?Equipment?&?Machine?:?all?imported?precision?ones
