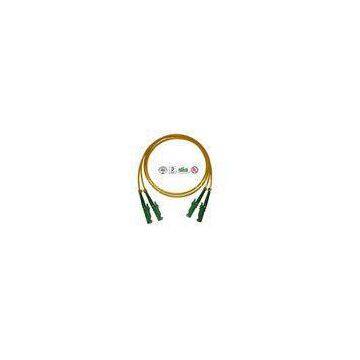

0.9mm PVC E2000 Fiber Optic Patch Cables Single Mode Double Cores

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Fiberroad

Place of Origin

China

Delivery Time:1week
Certification:CE

0.9mm PVC E2000 Fiber Optic Patch Cables Single Mode Double Cores

Parameters

Insertion?loss	Singlemode	PC≤0.3dB	UPC≤0.2dB	APC?≤0.3dB
Multimode	PC≤0.5dB	UPC≤0.3dB	???APC?≤0.3dB
Return?loss	Singlemode	PC≥48dB	?UPC≥50dB	APC?≥60dB??????
Multimode	PC≥25dB	UPC≥45dB	?APC?≥50dB
Reaptability	≤0.1db
Changeability	≤0.2dB
Working?temperature	-40?to?+80℃
Durability	1000?times
Sustain?tension	≥100N
Fiber?	9/125um?, 50/125um, ?62.5/125um, ?etc.
Diameter	0.9mm?2.0mm?3.0mm, ?etc.
Cable?material	PVC, ?LSZH
Cores	Simplex, ?duplex, ?4cores, ?6cores, ?8cores, 12cores, ?etc.

Description:

Applicable scope:

1, optical fiber communication system,

2, optical fiber data transmission;

3, a local area network (LAN),

4, optical fiber sensors,

5, CATV.
