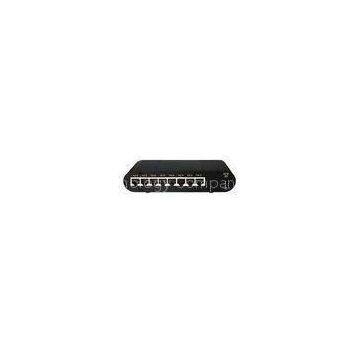

Full / Half Duplex Power Over Switching 8 Port 802.3af 100BASE-T

Brand Name	Fiberroad		Place of Origin	China

Delivery Time:1 Weeks

Full / Half Duplex Power Over Switching 8 Port 802.3af 100BASE-T

Features:

?Desktop Ethernet PoE switch. 8 x 10/100Mbps Auto-negotiation Fast Ethernet Switch with 4-Port PoE function port 1 to port 8. 10/100BASE-T Full / half duplex transfer mode on all five ports. Compliant with IEEE 802.3af specification. Supports 802.3af 15.4W per port and 112W for all PoE ports.Max. Supports PoE IEEE802.3af compliant Powered Device (PD)

APPLICATIONS:

Supply power to Power Over Ethernet devices. PoE VoIP Phone / VOIP Phone. PoE Wireless Access Points / Wireless Access Points. PoE IP Camera / IP Camera. PoE IP Phone / IP Phone.
And more in further.

Specification:

NETWORK PROTOCAL AND STANDARDS:

IEEE 802.3 10BASE-T Ethernet. IEEE 802.3u 100BASE-T Fast Ethernet. IEEE 802.3 NWay Auto-Negotiation. IEEE 802.3af Power over Ethernet

PRODUCT/PERFORMANCE:

Number of Ports: 10/100BASE-T on all eight ports. Power Over Ethernet: from port 1 to Port 8. 802.3af 15.4W per port and 112.0W Max. PoE Ports Output Voltage Range: 44-57VDC. Network Address Translation (NAT)
MAC Filtering

INTERFACE PORTS:

8P8C RJ-45 x 8 supports Shielded (STP) and Un-Shielded (UTP) Cat 5, 5E, 6 . PoE power is delivered to the twist-pair pin 1, 2 and pin 3, 6. 10/100Mbps: x 8. PoE Power: X 8 .

POWER/ELECTRICAL:

?Total Power consumption: 60.0W max. Power Adaptor: 110-240VAC to 48VDC 2.5A. PoE Power: Up to 15.4 watts max per port for all ports 1 ¨C 8. Total PoE power 112.0W max.

LED INDICTORS:

Power on Indictors x 1. Link/Active: x 8. PoE Power: X 8.

OPERATION ENVIRONMENT:

????? Operation Temperature: 0 ~ 40 degree C
???????????????????????????????????????????? +32 ~ 104 degree F?
????????????? Relative Humidity: 10% - 90%

DIMENSIONS AND PACKAGE:

?????? Enclosure: Sheet metal in black color.
?????? Dimensions: 172mm W x 94mm D x 36mm H
?
