High Precision Command Switch Silver Contact Tips of Arc-resistance

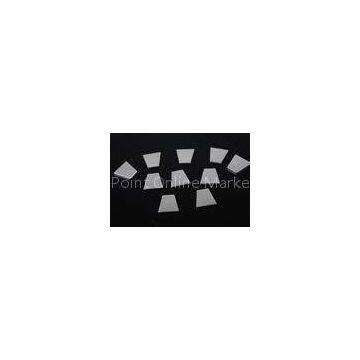

Electrical Contact Tips , AgCdO Silver Sheet Plate For Command Switches

Quick Detail:

Characteristics and Applications for AgCdO contact material

Contact Material in Huano:Type 3

AgCdO10,AgCdO20

AgCdO10,AgCdO20 Properties

CdO particles are finely distributed in Ag matrix. Under the action of arc, CdO decomposes and vaporizes, which cools down the contact surface,

so as to lower the arc energy and extinguish the arc. This material is of high welding resistance and electric wear resistance, low and stable contact resistance.

by increasing CdO content, the welding resistance of the material can be improved, but the contact resistance and temperature rise will also increase.

Main applications for AgCdO10,AgCdO20 contact material according to its properties:

Widely used to relays, contactors and AC/DC switches for medium or large current, circuit breakers for medium or small current; specially fit for AC contactors for medium or large current.

Delivery forms:

AgCdO alloy Wire,AgCdO alloy plate or AgCdO alloy rivet

Our company can offer various kinds of elecrical sheet or plates according to your drawings or samples.

Features for different contact sheet plate material

Pure silver sheet plate

(1) Pure silver has extremely high electrical conductivity

(2) Very low contact resistance rate

(3) Easy to solder

(4) It is easy to produce, so silver is an ideal contact material

(5) It is one of the most widely used materials in small capacity and voltage appliances

AgNi sheet plate

(1) AgNi contact material contains 10% to 40% Ni

(2) Produced by powder metallurgical production, with low and stable contact resistance,

high hardness and mechanical strength

(3) Material transfer in case of DC is very low

(4) High electrical and thermal conductivity

(5) With very low arc erosion

6) Wire of solid and composite rivets produced by powder sintering-extruding methods

AgSnO2 sheet plate
