Home > Products > New product > STN 16x2 Character lcd module with led backlgith

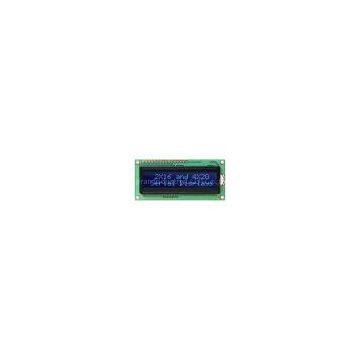

STN 16x2 Character lcd module with led backlgith
USD $2.0 - $2.0
/ Piece
100 Pieces(Min.Order)
- 100000000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
Model: ACM1602A Series
LCD Module Dimension:80.0(W)X36.0(H)X13.5(T)mm
LCD Viewing Area: 64.5*13.8mm
Drive voltage:5.0V
LCD Type: STN Blue /STN yellow/STN gray,FSTN
Operating temp: STD.temp./ Wide temp.
Storage temp: -20 c to +70 c
Polarizer Mode: Transmissive/Transflective/Reflective
Backlight: Edge / bottom led backlight
RoHS Compliance
More many different alphanumeric types ,graphic types, give you plenty to chose from- 1x8 to 4x40 character displays ,122x32 to320x240 Graphic displays. Standard backlight options of low-power electroluminescent, high-brightness EcoBrightTM non-powered backlight by special order. LED or CFL backlights, low profile edge light options for thinner displays. Standard or wide-temperature (-20°C to +70°C) operation. All parts can include an HD44780 compatible controller which can be ordered in either: Standard, European, Cyrillic, Russian, or Greek font options. With more than hundreds different combinations in our regular range, we have the display for your application. If we haven't, we can always fully or semi custom them for you!
