- Zhangjiagang KMLIKE Hydraulic Co.,Ltd
-
Lishui, Zhejiang, China
- Main products: Hydraulic Piston Pumps
Home > Products > Hydraulic Piston Pumps > OEM Flow Control Hydraulic High Pressure Piston Pumps for Hydraulic System

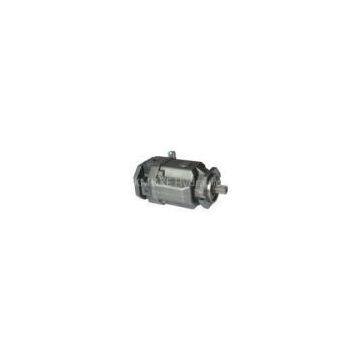

OEM Flow Control Hydraulic High Pressure Piston Pumps for Hydraulic System
- T/T L/C D/P D/A
- 7 days
You May Like
-
Clockwise Rotation Tandem Piston Pump for Hydraulic System With Thru - Drive Rear Cover
-
OEM Different Displacement 18cc / 28cc / 45cc Axial Piston Hydraulic Pump
-
High Pressure SAE 2 Hole UNC Inch Thread Axial Piston Hydraulic Pumps
-
Perbunan Seals High Pressure Axial Piston Hydraulic Pumps A10VSO18 / 28
-
OEM Low Noise Clockwise Rotation Axial Hydraulic Variable Displacement Piston Pump
-
2600 Rpm Axial Hydraulic Piston Pumps A10VSO45 for Boats Hydraulic System
Product Details
| Brand Name | KMLIKE | Place of Origin | China | |
| Model Number | A10VSO18/28/45/71/100/140 |
Product Description
Certification:ISO9000
OEM Flow Control Hydraulic High Pressure Piston Pumps for Hydraulic system
Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump
Specifications:
|
Specifications: |
16/18 |
28 |
45 |
71 |
100 |
140 |
|||
|
Displacement |
Vg? max |
cm3 |
18 |
28 |
45 |
71 |
100 |
140 |
|
|
Max speed |
nmax |
rpm |
3300 |
3000 |
2600 |
2200 |
2000 |
1800 |
|
|
Max. flow |
in? nmax |
qv |
L/min |
59.4 |
84 |
117 |
156 |
200 |
252 |
|
in 1500 r/min |
27 |
42 |
68 |
107 |
150 |
210 |
|||
|
Max. power (Δp=280bar) |
in nmax |
Pmax |
Kw |
27.7 |
39 |
55 |
73 |
93 |
118 |
|
in 1500 r/min |
12.6 |
20 |
32 |
50 |
70 |
98 |
|||
|
Max. torque (Δp=280bar) |
in Vg? max |
Tmax |
Nm |
80.1 |
125 |
200 |
316 |
445 |
623 |
|
Weight |
m |
Kg |
12 |
15 |
21 |
33 |
45 |
60 |
Applications:
Hydraulic system. Ship Hydraulic system.
Advantage:
Good quality, Competitive price and quick delivery.
Low noise, SmallVolume
